EZ430-RF256X

TEXAS INSTRUMENTS  EZ430-RF256X  开发工具, MSP430, 蓝牙

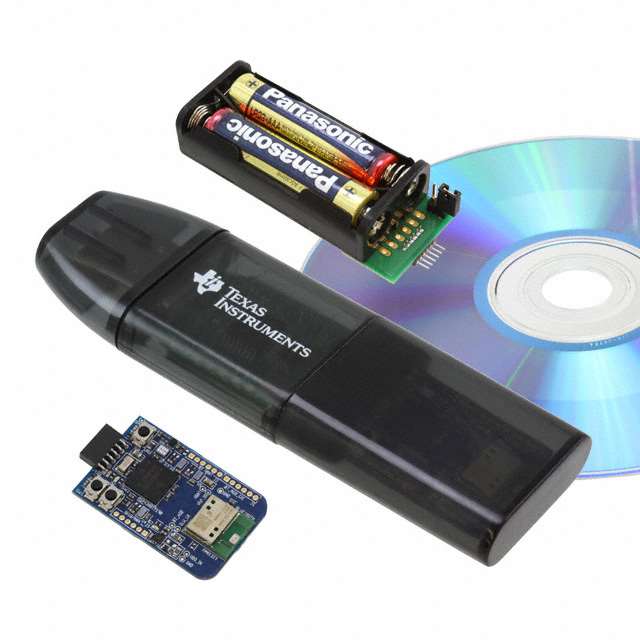

The is a complete Bluetooth evaluation and demonstration tool for the MSP430 and CC256x Bluetooth that includes all the necessary hardware and software in a convenient USB stick. The evaluation tool includes USB powered emulator to program and debug your application and two Bluetooth target boards featuring the highly integrated MSP430BT5190 ultra low power MCU & Panasonic PAN1323 module. The required embedded software comes pre flashed on the MSP430 device for ease of use out of the box. The tool also comes with a sample PC game that you can play using the target board as a remote controller. Users may download the eZ430-RF256x Software development kit SDK to develop and instantly demonstrate Bluetooth applications using the included battery expansion board and AAA batteries. The eZ430-RF256x SDK includes MindTree"s ethermind Bluetooth stack, Serial Port Profile SPP and embedded sample applications running on FreeRTOS.

.

PAN1323 Bluetooth module with antenna contains CC2560A device

.

MSP430BT5190 25MHz, 256KB Flash, 16KB RAM, 12bit ADC, 4 USCIs, 32bit HW multi

.

Pre flashed eZ430-RF256x SDK with mindTree"s ethermind Bluetooth stack, serial port profile SPP

.

Embedded sample applications running on FreeRTOS

.

Interactive sample PC game for demonstration of Bluetooth use in a remote control application

.

Temperature sensors with accuracy as low as ±2 degrees Celsius from -40C to +85C

.

Supports software development with the MSP430BT5190 microcontroller

.

Removable USB stick enclosure

.

Three push buttons
