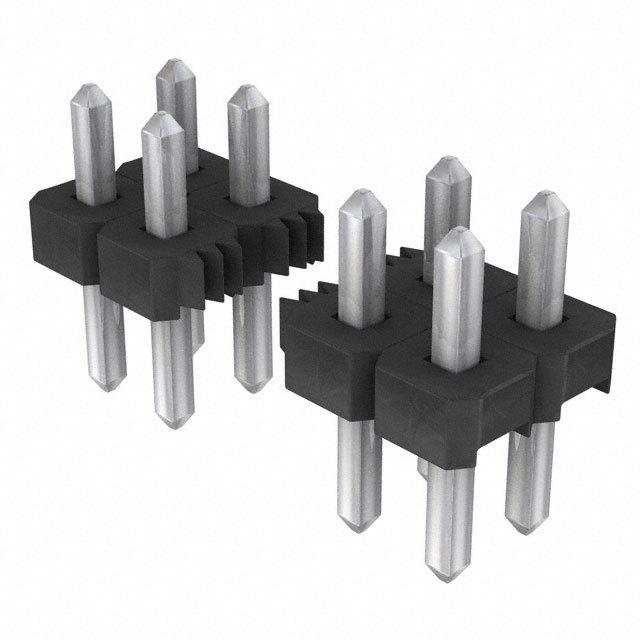

TLW-110-06-T-D

Conn Unshrouded Header HDR 20POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 20 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 20POS 2.54MM

艾睿:
Mount this unshrouded TLW-110-06-T-D header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5.2 A/contact. It uses the solder termination method. This product is 25.4 mm long, 4.19 mm tall and 5.03 mm deep. TLW-110-06-T-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TLW-110-06-T-D  LOW PROFILE .025 SQ STRIPS
