2SA1531

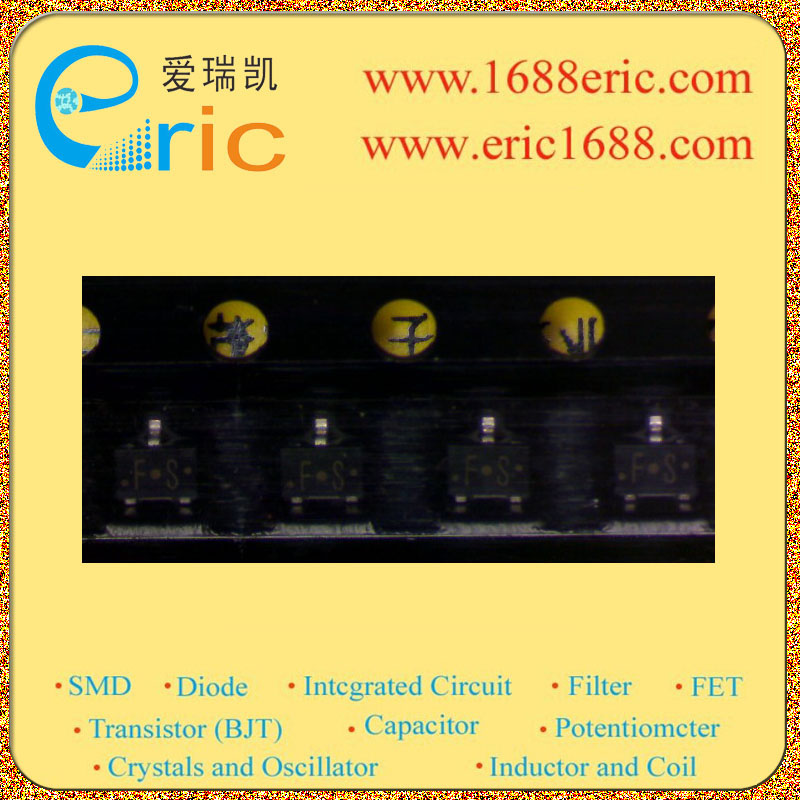

2SA1531 PNP三极管 -35V -50mA 80MHz 260 ~ 520 -600mV/-0.6V SOT-323/SC-70 marking/标记 FS 低频放大

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| -35V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| −35V 集电极连续输出电流ICCollector CurrentIC| -50mA 截止频率fTTranstion FrequencyfT| 80MHz 直流电流增益hFEDC Current GainhFE| 260 ~ 520 管压降VCE(sat)Collector-Emitter SaturationVoltage| −600mV/-0.6V 耗散功率PcPoWer Dissipation| 150mW/0.15W Description & Applications| For low-frequency and low-noise amplification Complementary to 2SC3929 and 2SC3929A Features Low noise voltage NV. High foward current transfer ratio hFE. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. 描述与应用| 对于低频和低噪声放大 互补2SC3929、2SC3929A 特点 低噪声电压NV。 高正向电流传输比HFE
