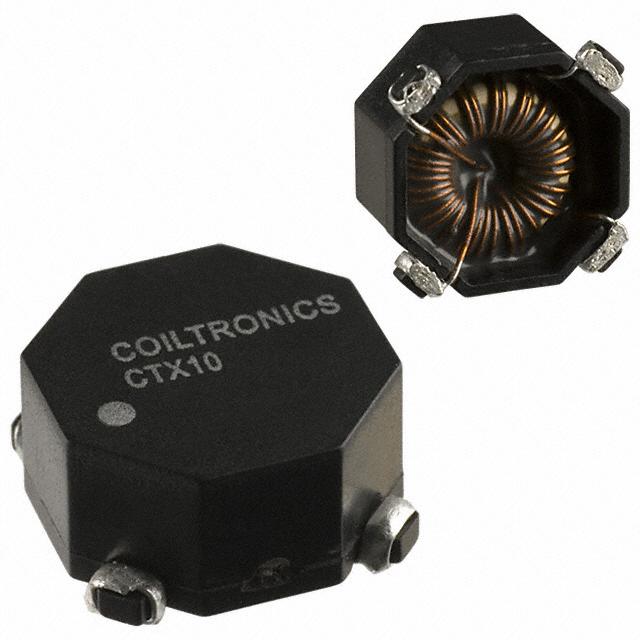

CTX10-4A-R

Inductor Power Wirewound 10.53uH/42.11uH 25% 100kHz Amorphous Metal 4.67A/2.33A 20mOhm/81mOhm DCR T/R

The OCTA-PAC PLUS CTX 4A series Power Inductor designed around high frequency, low loss core material. The surface mount magnetics that can be used as single or coupled inductors or 1:1 transformers that provide isolation between two windings. The OCTA-PAC PLUS"s offer higher current ratings and higher saturation flux densities than OCTA-PAC and ECONO-PAC, amorphous metal core material. It is suitable for DC-DC converters, buck, boost, forward and resonant converters.

.

Secure 4 terminal mounting

.

Inductor more versatile inductance combination by series or parallel connections

.

-40° to 85°C Operating ambient temperature range

.

260°C Maximum for 10 seconds maximum solder reflow temperature
