RH5RI301B

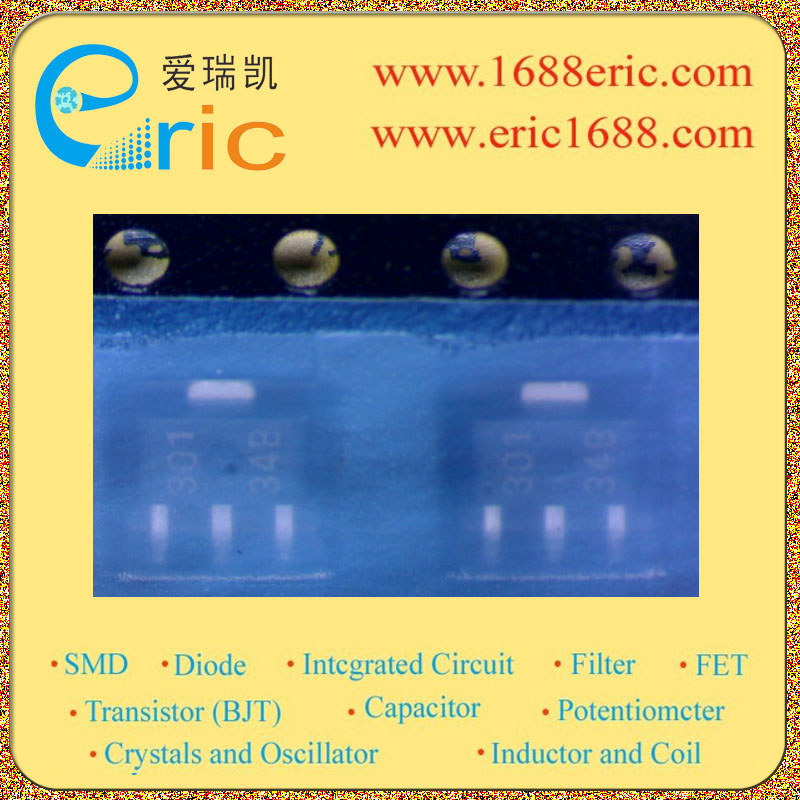

RH5RI301B DC/DC升压转换器电源管理IC 3V SOT-89 marking/标记 301 VFM升压，高输出电压精度

控制方式MODE| PWM \---|--- 输入电压VINInput Voltage| ≤8V 输出电压VOUTOutput Voltage| 3V 输出电流IOUTOutput Current| 1mA 震荡频率FOSCOscillation Frequency| 50KHz 内置FETBuilt-in FET| Description & Applications| VFM STEP-UP DC/DC CONVERTER • Small Number of External Components Only an inductor, a diode and a capacitor • Low Supply Current 15µA • Low Ripple and Low Noise • Low Start-up Voltage when the output current is 1mA .MAX. 0.9V • High Output Voltage Accuracy. ±2.5% • High Efficiency . 85% • Low Temperature-Drift Coefficient of Output Voltage . ±50 ppm/˚C • Soft-Start .MIN. 500µs • Small Packages SOT-89 RH5RH××1A, RH5RH××2B, SOT-89-5 RH5RH××3B • Power source for battery-powered equipment. • Power source for cameras, camcorders, VCRs, PDAs, electronic data banks,and hand-held communication equipment. • Power source for instruments which require low noise and low supply current, such as hand-held audio equipment. • Power source for appliances which require higher cell voltage than that of batteries used in the appliances 描述与应用| VFM升压DC/ DC转换器 •小的外部元件数目只有一个电感，一个二极管和一个电容 •低电源电流15μA •低纹波，低噪声 •低启动电压（输出电流为1mA时）最大。 0.9V •高输出电压精度。 ±2.5％ •高效率。 85％的 •低输出电压的温度漂移。 ±50 PPM /˚C •软启动。最小。 500μs的 •小封装SOT-89（RH5RH××1A，RH5RH××2B） SOT-89-5（RH5RH××3B） •电池供电设备的电源。 •电源相机，摄像机，录像机，掌上电脑，电子数据银行，和手持通信 的设备。 •电源要求低噪音和低电源电流，如手持式音频设备仪器。 •电源设备需要更高的电池电压比在家电使用的电池
