TFM-135-01-S-D-RA

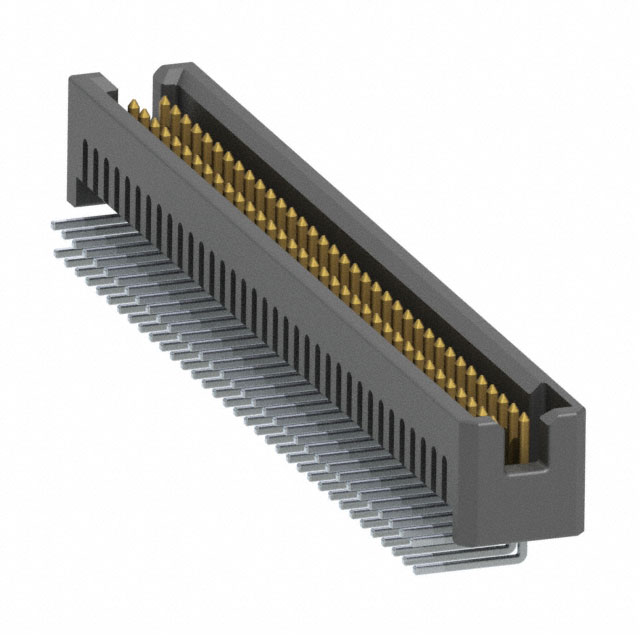

SAMTEC TFM-135-01-S-D-RA Board-To-Board Connector, 1.27mm, 70Contacts, Header, TFM Series, Through Hole, 2Rows

针座 通孔，直角 70 位置 0.050"（1.27mm）

欧时:
Tiger Eye HDR .050" 70p

得捷:
CONN HEADER R/A 70POS 1.27MM

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded TFM-135-01-S-D-RA header connector from Samtec. This HDR connector&s;s 70 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TFM-135-01-S-D-RA is housed in black liquid crystal polymer. It uses the solder termination method. This product is 47.63 mm long, 5.72 mm tall and 7.37 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Shrouded Header HDR 70 POS 1.27mm Solder RA Thru-Hole Tube

Newark:
# SAMTEC  TFM-135-01-S-D-RA  Board-To-Board Connector, 1.27 mm, 70 Contacts, Header, TFM Series, Through Hole, 2 Rows
