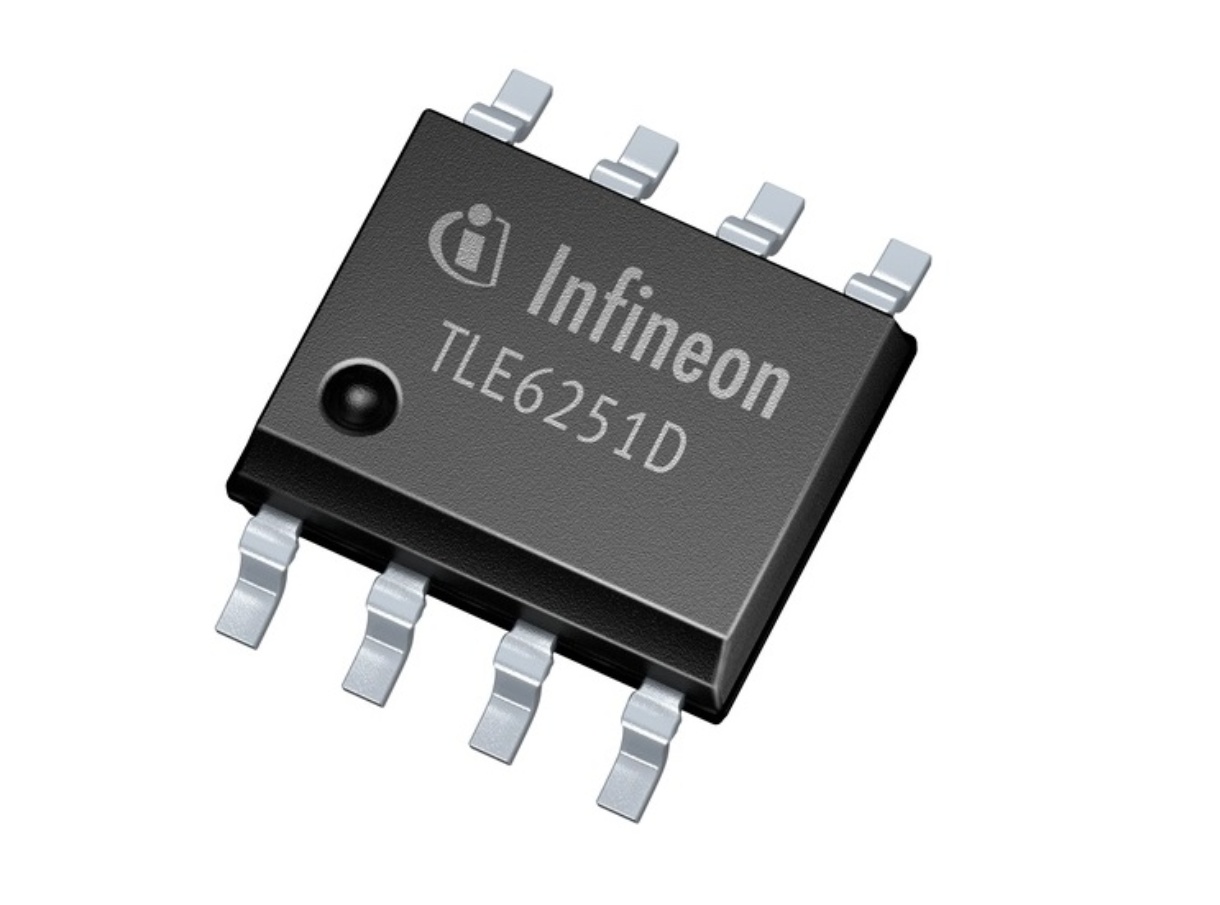

TLE6251D

CAN收发器,具有总线??唤醒功能

Description:

The is a transceiver designed for CAN networks in automotive and industrial applications. As an interface between the physical bus layer and the CAN protocol controller, the TLE6251D drives the signals to the bus and protects the microcontroller against interferences generated within the network. Based on the high symmetry of the CANH and CANL signals, the TLE6251D provides a very low level of electromagnetic emission EME within a wide frequency range. The TLE6251D is integrated into a RoHS compliant PG-DSO-8-16 package and fulfills or exceeds the requirements of the ISO11898-2 / -5.  The TLE6251D allows very low quiescent currents in stand-by mode while the device is still able to wake-up by a bus signal on the CAN bus. Based on the very low leakage currents on the CAN bus interface the TLE6251D provides an excellent passive behavior in power-down state. These and other features make the TLE6251D especially suitable for mixed supply CAN networks. Based on the Smart Power Technology SPT, the TLE6251D provides excellent ESD immunity together with a very high electromagnetic immunity EMI. The TLE6251D and the Infineon SPT technology are AEC qualified and tailored to withstand the harsh conditions of the Automotive Environment. Two different operation modes, additional fail-safe features like a TxD time-out, and the optimized output slew rates on the CANH and CANL signals make the TLE6251D the ideal choice for large CAN networks with high data transmission rates.

Summary of Features:

.

Fully compatible with ISO 11898-2 / -5

.

Wide common mode range for electromagnetic immunity EMI

.

Very low electromagnetic emission EME

.

Excellent ESD immunity

.

Extended supply range on V CC and V IO

.

VIO input for voltage adaption to the microcontroller supply

.

CAN short-circuit proof to ground, battery and V CC

.

TxD time-out function

.

Low CAN bus leakage current in power-down state

.

Overtemperature protection

.

Protected against automotive transients

.

CAN data transmission rate up to 1 Mbps

.

Stand-by mode with remote wake-up function

.

Wake-up detection by signal change on the RxD output

.

Power Supply V CC can be turned off in stand-by mode

.

Green Product RoHS compliant

.

AEC Qualified
