KPT02E14-12S
底盘安装尺寸 mm --- 线路 | A(直径) | B | C(直径) | W 6 | 17.8 | 18.3 | 3.05 | 24.2 12 | 24.1 | 23.0 | 3.05 | 29.0 19 | 24.1 | 23.0 | 3.05 | 29.0 26 | 27.5 | 24.6 | 3.05 | 31.3 32 | 30.5 | 27.0 | 3.05 | 33.7 **注意:**A尺寸是前面安装断电器。 ### 注电缆插头只能接合底盘插座。 电缆插座只能接合底盘插头。 ### ITT KPT(橄榄色)符合 MIL-C-26482 的高质量多极连接器,带正向三点卡口耦合、焊接连接和镀金触点。 电缆安装型号包含电线和电缆夹,以消除应力和确保密封。 橄榄绿色镀铬处理镉涂层提供屏蔽的耐用表面。 能插接类似 MIL-C-26482 、带插入触点在正常方位的连接器。 这些连接器还提供自旋耦合底壳 - 请参阅库存号 241-1294(典型)。 总额定电流(每连接器) | 5A x 触点数 ---|--- 额定电流(每触点) | 7.5A 最大工作电压 | 700 Vac r.m.s. 或 850V 直流 击穿电压 | 最小 1.5kV 交流 触点电阻 | 7.5 A 时 7mΩ 在 500V 直流电压下的绝缘电阻 | 5´109Ω 温度范围 | -55 → +125°C 线规格,尺寸 16 触点 | 16-20 AWG 线规格,尺寸 20 触点 | 20-24 AWG

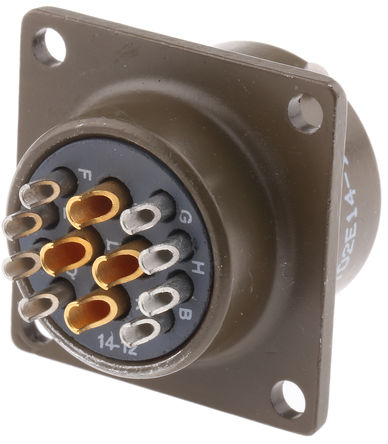

The from ITT Cannon is KPT series, MIL-DTL-26482 series I equivalent box mount receptacle with 12 contacts. The KPT series miniature circular connectors conforms to meet the performance specification to MIL-DTL-26482 series I with a positive three point quick disconnect bayonet coupling, five keyway polarization and high insert arrangement contact density. These connectors are designed for harsh environments and have well-proven electrical capability to withstand extreme shock, exposure and vibration. The KPT series general purpose solder connectors are optimized for fast assembly featuring clip-in contact & insulator design. They are intermateable, intermountable and interchangeable with all MIL-DTL-26482 connectors. Design modifications can be achieved at low cost.
- .
- Bayonet coupling assures fast and reliable mating/unmating
- .
- Environmentally sealed, IP68 rated
- .
- Operating temperature range from -55°C to +125°C
- .
- Durability of 500 mating cycles
- .
- 200m/s² at 10Hz to 2000Hz vibration
- .
- Insulation resistance is 5000Mohm at 25°C
- .
- Resilient polychloroprene neoprene insulator and grommet
- .
- Salt spray exposure of 500hour
- .
- Aluminium alloy body material with olive drab chromate over cadmium plating
- .
- Copper alloy solder socket contacts with gold plating
