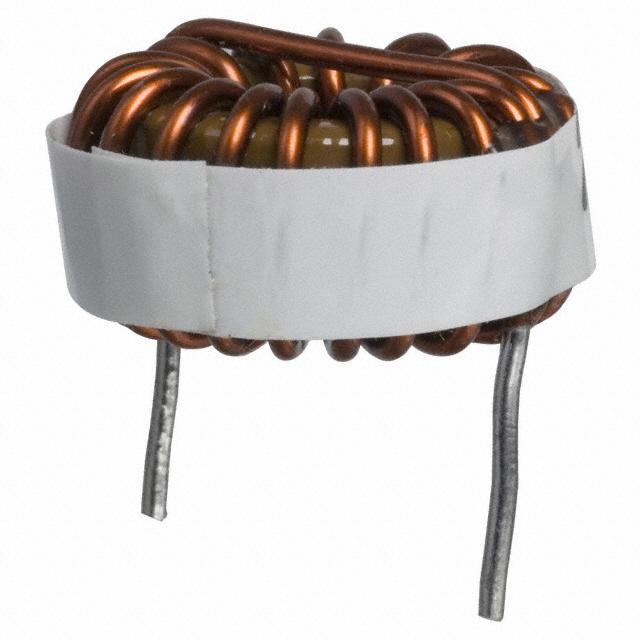

2109-H-RC

Inductor High Current Toroid 47uH/34.7uH 15% 1kHz 3.6A 55mOhm DCR RDL

* DC/DC Converter, EMI Filter Applications

* Low Radiation

* Low Core Loss

* High Current Capacity

* Horizontal or Vertical Mount

* Low Cost

* Operating Temperature –55°C to +105°C

得捷:
FIXED IND 47UH 3.6A 55 MOHM TH

立创商城:
47uH ±15% 3.6A 55mΩ

艾睿:
This high current 2109-H-RC leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This part has a pitch of 19.05 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This leaded inductor has a maximum DC current of 3.6 A with a maximum resistance of 55m Ohm. This device utilizes toroid technology. It has a tolerance of 15%. It has an inductance of 47u/34.7uRated H. This product is 11.43 mm tall with a diameter of 21.84 mm. Its test frequency is 1K Hz.

Allied Electronics:
Inductor; Toroid, High Current; 47uH; 15%, 0.055 Ohm DCR Max; Horizontal

安富利:
Ind High Current Toroid 47uH 15% 1KHz 3.6A RDL

Verical:
Inductor High Current Toroid 47uH/34.7uH 15% 1KHz 3.6A 0.055Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2109-H-RC  Inductor, Toroidal, High Current, 2100 Series, 47 µH, 3.6 A, 0.055 ohm, ± 15%

MASTER:
Inductor High Current Toroid 47uH/34.7uH 15% 1KHz 3.6A 55mOhm DCR RDL

Online Components:
Inductor High Current Toroid 47uH/34.7uH 15% 1KHz 3.6A 55mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 47uH/34.7uH 15% 1KHz 3.6A 55mOhm DCR RDL
