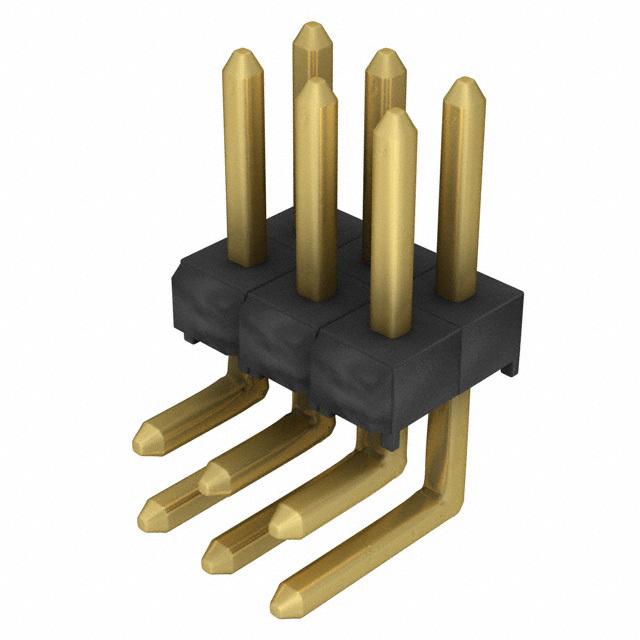

TSW-103-08-G-D-RA

2.54mm 方针

针座 通孔，直角 6 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 6POS 2.54MM

欧时:
2.54mm TSW series R/A PCB pin header, 6P

立创商城:
2.54mm 方针

艾睿:
Mounting this unshrouded TSW-103-08-G-D-RA header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. It has a header type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. TSW-103-08-G-D-RA is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 7.62 mm long, 5.56 mm tall and 12.44 mm deep.

安富利:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-103-08-G-D-RA  Board-To-Board Connector, 2.54 mm, 6 Contacts, Header, TSW Series, Through Hole, 2 Rows
