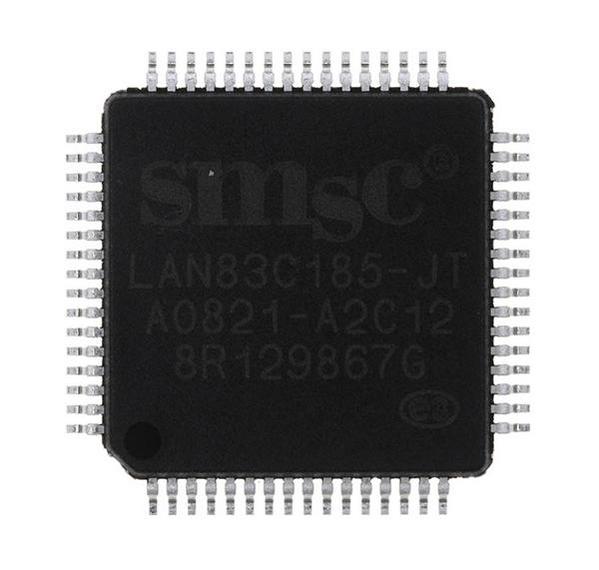

LAN83C185-JD

Ethernet ICs Lo Pwr 10/100 3.3V PHY

The SMSC LAN83C185 is a low-power, highly integrated analog interface IC for high-performance

embedded Ethernet applications. The LAN83C185 requires only a single +3.3V supply.

Product Features

■ Single Chip Ethernet Phy

■ Fully compliant with IEEE 802.3/802.3u standards

■ 10BASE-T and 100BASE-TX support

■ Supports Auto-negotiation and Parallel Detection

■ Automatic Polarity Correction

■ Integrated DSP with Adaptive Equalizer

■ Baseline Wander BLW Correction

■ Media Independent Interface MII

■ 802.3u compliant register functions

■ Vendor Specific register functions

■ Comprehensive power management features

■ General power-down mode

■ Energy Detect power-down mode

■ Low profile 64-pin TQFP package

■ Single +3.3V supply with 5V tolerant I/O

■ 0.18 micron technology

■ Low power consumption

■ Operating Temperature 0°C to 70°C

■ Internal +1.8V Regulator

Applications

■ LAN on Motherboard

■ 10/100 PCMCIA/CardBus Applications

■ Embedded Telecom Applications

■ Video Record/Playback Systems

■ Cable Modems And Set-Top Boxes

■ Digital Televisions

■ Wireless Access Points
