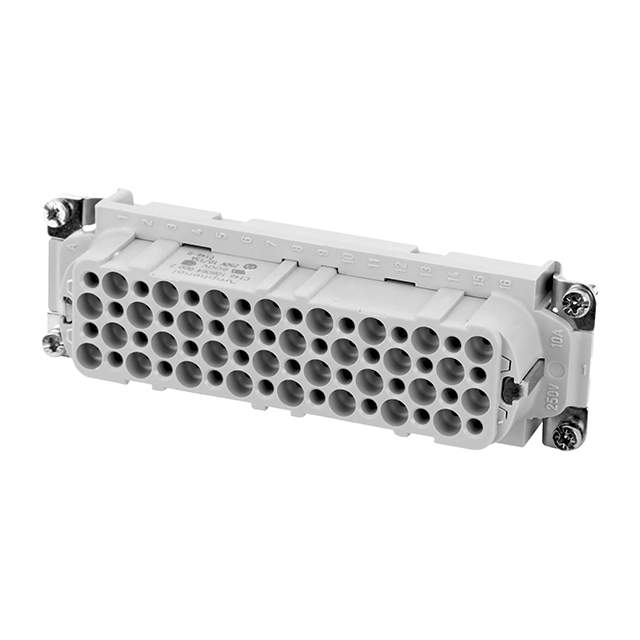

C146 10B064 000 2

AMPHENOL TUCHEL  C146 10B064 000 2  重载连接器插件, 64+PE, 少触芯, C-146系列, 插座, E24, 压接槽-无触芯, 10 A

Heavy Duty Connectors, Receptacle, Silver Plating

* Crimp termination

* 1.6 mm contact diameter

These connectors are designed and produced in conformity with the low voltage directive 73/23/EWG respectively and are especially in accordance with the standards DIN EN 61984 VDE0627; IEC 60664-1 VDE 0110-1 and IEC 60529. The connectors may be used

得捷:
INSERT FEMALE 64POS+1GND CRIMP

e络盟:
AMPHENOL TUCHEL  C146 10B064 000 2  重载连接器插件, 64+PE, 少触芯, C-146系列, 插座, E24, 压接槽-无触芯, 10 A

艾睿:
Printed circuit boards, wires, or any other electronic component can be easily and reliably connected together using one of Amphenol&s;s heavy-duty rectangular C146 10B064 000 2 USB connectors. This female connector&s;s 64signal / 1ground contacts that are made out of bronze and plated with silver. It has a receptacle type gender. This is a 4-row connector. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. C146 10B064 000 2 is housed in thermoplastic. This device has a maximum current rating of 10 A. This harting connector has an operating temperature of -40 to 125 °C. This product is 110 mm long, 34 mm tall and 36 mm deep. It uses the crimp termination method.

Allied Electronics:
64+PE HD female contact insert for stamped crimp contacts; contacts sold separate

TME:
Connector: HDC; female; C146,heavy|mate D; PIN:64; 64+PE; size E24

Newark:
# AMPHENOL TUCHEL  C146 10B064 000 2  Heavy Duty Connector Insert, 64+PE, Less Contacts, Heavy Mate D Series, 65, 4, Receptacle, Signal

儒卓力:
**64P FEMALE CONN STAMPEDCONTACTS **
