IP4059CX5/LF

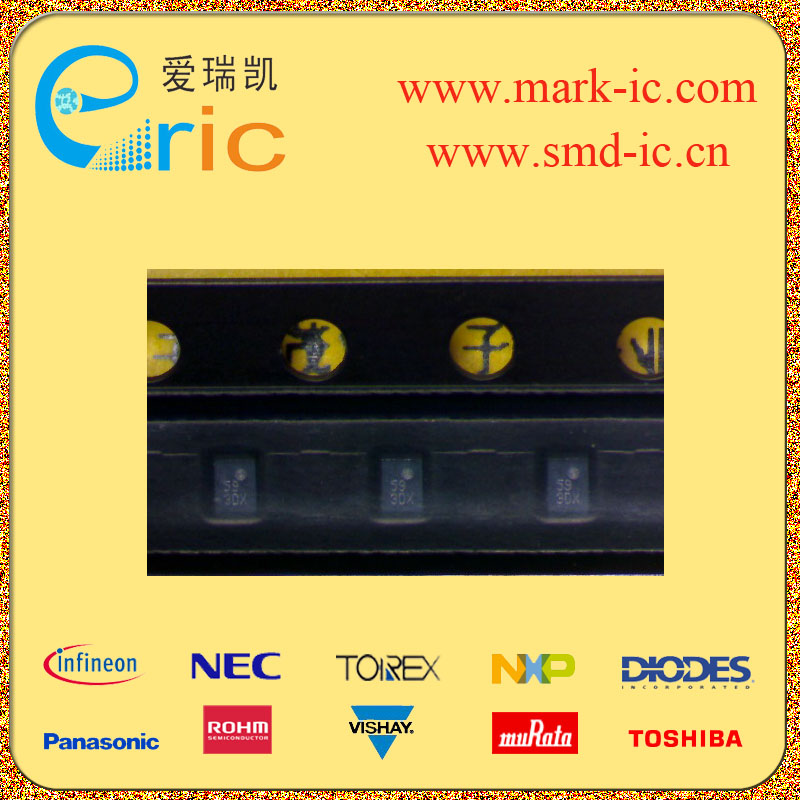

IP4059CX5/LF 瞬态抑制二极管TVS/ESD 3V BGA 0805/5 ball CSP 标记

极性Polarization| 双向 Bidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 3V 反向击穿电压VBRBreakdown Voltage| 6V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 峰值脉冲电流IPPmPeak Forward Surge Current| 额定耗散功率PdPower dissipation| Description & Applications| Features and benefits •Integrated USB 2.0 and USB OTG ESD protection to •Pb-free, RoHS compliant and free of halogen and antimony Dark Green compliant •4 ultra-low input capacity rail-to-rail ESD protection diodes with Cd = 3.0 pF •Integrated ESD protection withstanding 8 kV contact discharge and 15 kV air discharge •WLCSP with 0.5 mm pitch 描述与应用| 特性与优点 •集成的USB 2.0和USB OTG ESD保护 •无铅，符合RoHS标准，不含卤素和锑（墨绿色兼容） •4超低输入容量轨至轨ESD保护二极管，CD =3.0 pF的 •集成的ESD保护承受8 kV接触放电和15 kV空气放电 •0.5 mm间距WLCSP
