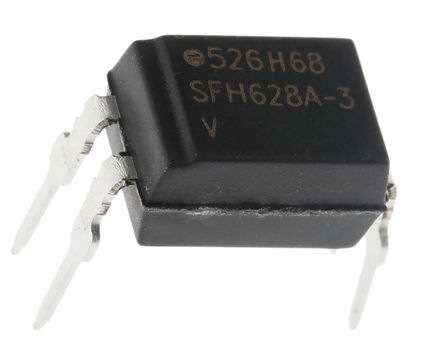

SFH628A-3

VISHAY  SFH628A-3  光电耦合器, 晶体管输出, 交流输入, 1通道, DIP, 4 引脚, 50 mA, 5.3 kV, 100 %

The is a 1-channel 4-pin Phototransistor Output Optocoupler with AC input. It features a high current transfer ratio, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared emitting diode, which is optically coupled to a silicon planar phototransistor detector. The coupling device is designed for signal transmission between two electrically separated circuits. The coupler is end-stackable with 2.54mm lead spacing. Creepage and clearance distances of >8mm. This version complies with IEC 60950 DIN VDE 0805 for reinforced insulation to an operation voltage of 400VRMS or DC. It is suitable for battery-powered equipment and office machines.

.

Low input current

.

High common-mode interference immunity

.

Low coupling capacitance

.

Good CTR linearity depending on forward current

.

Low CTR degradation

.

55V High collector-emitter voltage

.

-55 to +100°C Ambient temperature range
