81513530

Pressure Switch for DIN Rail 35mmPressure-operated pressure switches with manual control. Allowable fluids: air, inert gases Pressure indicator Built-in electrical connection Mounted on DIN rail 35mm EN 50022 Adjustable trigger pressure: | 2 → 8 bar ---|--- Hysteresis: | at 1 bar: 0.5 at 2 bar: 0.6 at 4 bar: 0.8 at 6 bar : 1 Operating temperature: | -10 °C → +50 °C Fluid temperature: | -10 °C → +30 °C Mechanical endurance: | 106 operations Max. operating voltage: | 60 Vdc Protection level: | IP 20 Pneumatic connection: | Instantaneous for semi-rigid tubing NFE 491 000: Ø 4 mm Electrical connection: | 3 screw terminals, 0.75 mm² wire cross-section and 3 mm² tightening capacity Weight: | 48 g Dimensions: | 76 x 32 x 17.5 mm ### 压力开关

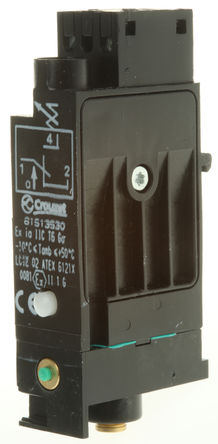

**Pressure Switch for DIN Rail 35mm**

**Featured List:**

* Pressure-operated pressure switches with manual control.

* Allowable fluids: air, inert Gasses

* Pressure indicator

* Built-in electrical connection

* Mounted on DIN rail 35mm EN 50022

欧时:
Pressure Switch for DIN Rail 35mmPressure-operated pressure switches with manual control. Allowable fluids: air, inert gases Pressure indicator Built-in electrical connection Mounted on DIN rail 35mm EN 50022 Adjustable trigger pressure: | 2 → 8 bar ---|--- Hysteresis: | at 1 bar: 0.5 at 2 bar: 0.6 at 4 bar: 0.8 at 6 bar : 1 Operating temperature: | -10 °C → +50 °C Fluid temperature: | -10 °C → +30 °C Mechanical endurance: | 106 operations Max. operating voltage: | 60 Vdc Protection level: | IP 20 Pneumatic connection: | Instantaneous for semi-rigid tubing NFE 491 000: Ø 4 mm Electrical connection: | 3 screw terminals, 0.75 mm² wire cross-section and 3 mm² tightening capacity Weight: | 48 g Dimensions: | 76 x 32 x 17.5 mm ### 压力开关

得捷:
SWITCH PRESSURE OPERATED DIN RL

Allied Electronics:
Pressure Sensor For Air, Fluid, Inert Gas, 8bar Max Pressure, 60 V, IP20

Verical:
INTRINSICALLY SAFE PRESSURE SWITCHES EEX IA II C T6
