AC164139

MICROCHIP  AC164139  原型开发板, 图形显示器

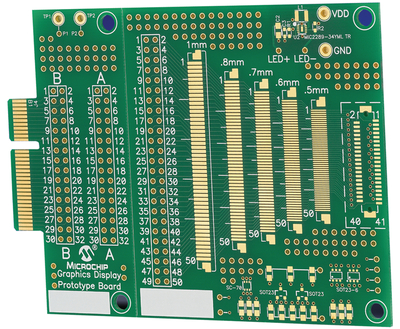

The is a Graphics Display Prototype Board provides an easy path to integrate a graphics LCD panel. Footprints of flat flexible connectors FFC with up to 50-pin with varying pitch sizes 1.0, 0.8, 0.7, 0.6, 0.5mm and VESA FPDI-1. display connector V1.

.

Prototyping area for power supply circuits

.

Flexible mapping of V1 connector signals to FFC connector signals

.

Compatible with Prototype PICtail Plus™ Daughter Board AC164126
