49-59112

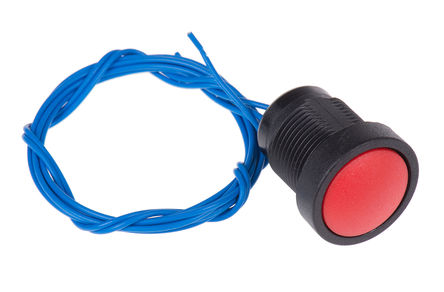

按钮开关，微型密封，带引线附随 2´24 a.w.g. 7//32 UL 1569 导线，500mm 长度，PVC 绝缘，末端截平未剥皮 密封等级 IP67 圆形按钮类型的照明版本通过按钮中央置入的光导管产生点状 LED 照明效果 镀金触点 触点额定值：400mA @ 32V 交流，100mA @ 50V 直流，125mA @ 125 V 交流 触点电阻：50mΩ 最大 寿命：>106 次操作 面板后深度 16mm，最大面板厚度 8mm，面板切口 16mm ### 16 - 18 毫米直径开孔 - 低压

The 49-59 series switches from ITW are momentary action pushbutton switches. These switches fit a 16mm diameter panel cut out. The range consists of a fully sealed IP67 version with insulated flying leads 500mm length along with a panel sealed IP67 version which is terminated by a series 16 microswitch. The SPDT-DB contacts provide reliable switching for DC loads. The series 49-59 is available with a choice of round, round with status illumination flying leads only or square bezels and with 6 button colour variants. The body and button are made from PBT, hard wearing thermoplastic polyester that is suitable for surface printing or engraving.

.

LED status illumination versions

.

Screw or snap-in panel mount

.

Square and round bezels

.

Logic level and 10A versions available

.

Fully sealed IP67 versions with 500mm insulated leads

.

Wide temperature range up to 105°C

.

Flame retardant UL rated material

.

Gold contacts on microswitch versions

.

Operating force of 3N
