RN2111

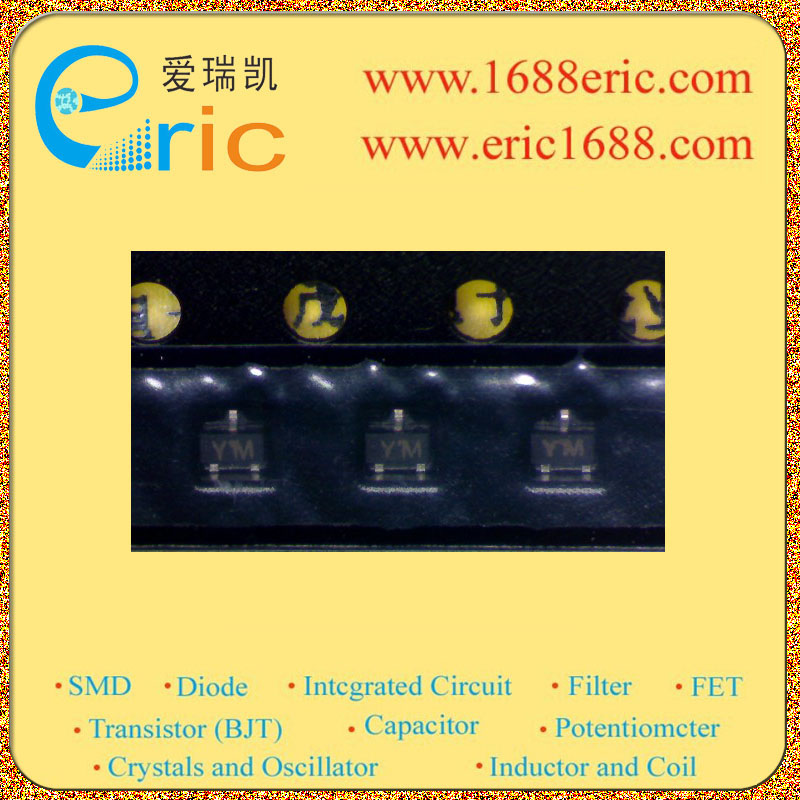

RN2111 带阻尼PNP三极管 -50V -100mA/-0.1A 120~400 0.1W/100mW SOT-523/SC-75/SSM 标记YM 开关电路，逆变器，接口电路，驱动电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V 集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A 基极输入电阻R1 Input ResistanceR1| 10KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 电阻比R1/R2 Resistance Ratio| 直流电流增益hFE DC Current GainhFE| 120~400 截止频率fT Transtion FrequencyfT| 200MHz 耗散功率Pc Power Dissipation| 0.1W/100mW Description & Applications| Features • Transistor Silicon PNP Epitaxial Type PCT Process • Built-in bias resistors • Simplified circuit design • Fewer parts and simplified manufacturing process • Complementary to RN1110~RN1111 Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications 描述与应用| 特点 •晶体管的硅PNP外延型（PCT工艺） •内置偏置电阻 •简化电路设计更少的部件和简化制造工艺 •互补RN1110~~ RN1111 应用 •开关，逆变电路，接口电路和驱动器电路应用
