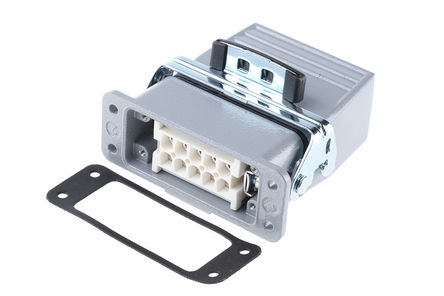

H-A Complete Metric 10 Way Panel Mount Kit, Right Angle

This H-A series connector kit has everything you need for a complete PCB power connection solution. The Kit features a right angle hood that connects to the locking PCB mounting base for secure mating. With a robust metal construction, this H-A series connector kit is extremely durable.

### This Kit Includes:

### Features and Benefits:

• A Right Angle Connector Hood

• A Connector Base with Locking Lever

• A 10 Way Male Connector Insert

• A 10 Way Female Connector Insert

• An M20 Gland

• IP65

• Temperature range: -40°C to +125°C

• Insulation group: VDE 0110 group B

### 认可

UL listed; CSA certified; SEV

### Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy

Plug and socket inserts are interchangeable allowing appliance inlet fixed plug and free cable mounting socket arrangements. A separate earth connection is made through all inserts

Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection see technical specification for details

Although of compact physical size this range is also rated to 250Vac working for group C Industrial

### Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.

3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

### Dimensions: 10 and 16 way

### Cable plug, side entry

Surface mtg socket

Panel mtg socket

Cable plug, top entry

### Dimensions: 32//48 way - gland size PG29

### Cable plug, side entry

Cable plug, top entry

Surface mtg socket 32 way only

Panel mtg socket
