EVAL-ADF7021-NDBZ5

ANALOG DEVICES EVAL-ADF7021-NDBZ5 开发子板, ADF7021-NDBZ5

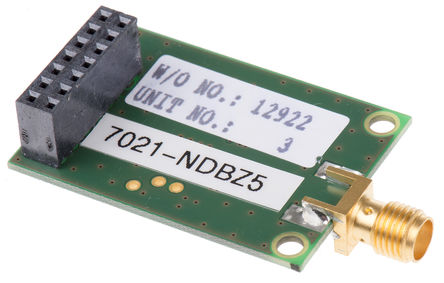

ADF7021-NDBZ5 80-650MHz RF Transceiver Evaluation Daughter Board

The

.: * ** is an evaluation module for the ADF7021-N transceiver device. It plugs into an EVAL-ADF70xxMBZ2 motherboard which provides a full set of development features.

ADF7021-N device set up for 80-650MHz frequency operation

Motherboard connector

SMA antenna connector

### 注

An EVAL-ADF70xxMBZ2 motherboard is required to use this module.

EVAL-ADF7021-NDBZ5 PDF数据文档
