DM320002
MICROCHIP DM320002 扩展板, PIC32输入/输出

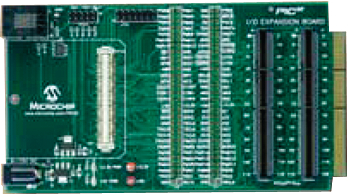

The is a PIC32 I/O expansion-board. The PIC32 I/O expansion-board provides starter board DM320001, DM320003 users with full access to MCU signals, JTAG debugging, ICSP development and connection of PICtail plus daughter cards. MCU signals are connected to the pin holes where vertical headers can be installed for attaching prototype circuits or logic probes. Headers are provided for connecting JTAG tools or tools using the 2-wire ICSP interface. A PIC32 starter kit DM320001, PIC32 USB starter kit-II DM320003-2, PIC32 Ethernet starter kit DM320004, dsPIC33E USB starter kit DM330012,or a PIC24E USB starter kit DM240012 is required for running application code as the I/O expansion-board does not have an MCU.
- .
- Features 2-wire ICSP interface
- .
- DM320002 features monitoring signals with logic probes
- .
- Users can connect an optional 9V power supply to expansion-board
Companion with DM320001, DM320003-2, DM320004 , DM330012, DM240012 kits and PIC32 USB Starter Kit III. Sold separately.
