A12R106HCR

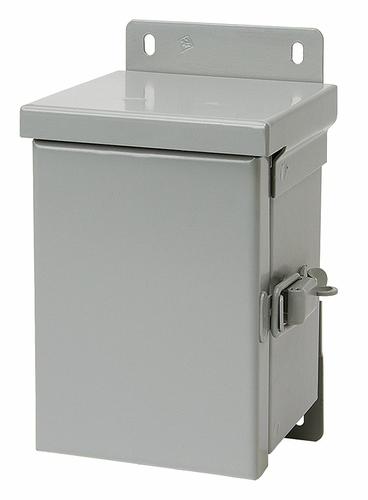

HOFFMAN ENCLOSURES A12R106HCR Metallic Enclosure, IP32, NEMA 3R, Junction Box, 305mm, 254mm, 152mm, Steel, Grey

**Applications:**

These enclosures have a size range of 6" × 4" × 4" to 12" × 12" × 10" and meet basic functionality requirements for applications that require protection from rain, sleet, snow or dripping water.

**Features:**

Drip-Shield Top and Seam-Free Sides, Front and Back

Plated Steel Hinge Has Stainless Steel Pin

Weldnuts Provided for Mounting Optional Panels

Provisions for Padlocking on Zinc-Plated Draw-Pull Catch

Knockouts on Bottom of Enclosure

No Gasketing

**Specifications:**

16-Gauge Galvanized Steel

**Finish:**

ANSI 61 gray powder paint finish inside and out over galvanized steel. Optional solid panels are white and optional perforated panels are gray.

**Industry Standards:**

UL 50, 50E Listed; Type 3R; File No. E27567

cUL Listed per CSA C22.2 No. 94; Type 3R; File No. E27567

NEMA/EEMAC Type 3R

IEC 60529, IP32
