SRU3028-100M

10uH ±20% 720mA

屏蔽 绕线 器 160 毫欧 非标准

立创商城:
10uH ±20% 720mA 160mΩ

得捷:
FIXED IND 10UH 720MA 160MOHM SMD

艾睿:

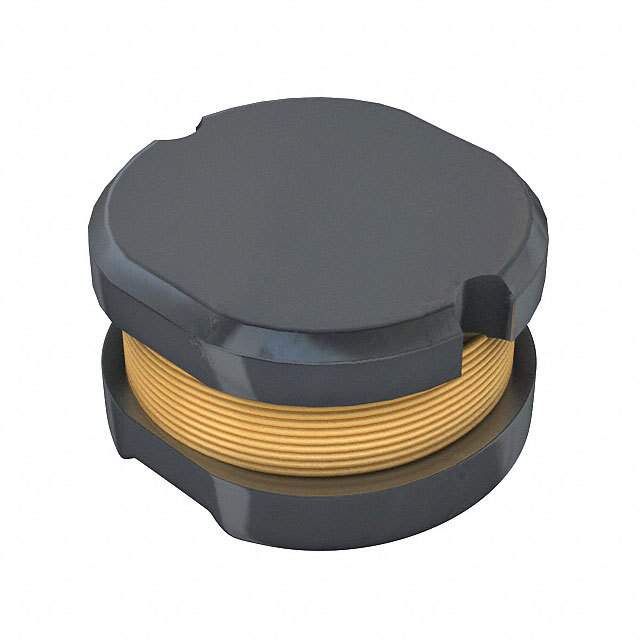

This power SRU3028-100M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 720m A with a maximum resistance of 160m Ohm. It has an inductance of 10u H. This product is 3.5 mm long, 3 mm tall and 3.5 mm deep. This device utilizes wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 35MTyp Hz.

Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 0.72A 0.16Ohm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 720mA 160mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 720mA 160mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Ferrite 720mA 160mOhm DCR T/R
