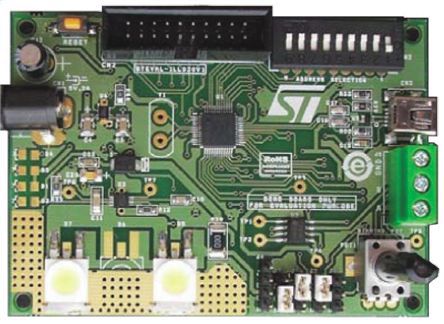

STEVAL-ILL030V1

LED Lighting Control Demonstration BoardUsing DMX512, based on the STM32F103C6 ARM Cortex-M3 microcontroller and STCS1A constant current led driver Jumper settings to configure the board in transmitter, receiver or standalone mode The STCS1A device provides dimming control of the on-board LEDs Over/undervoltage protection using the STBP120 voltage protection device Uses the ESDAULC6-3BP6 ESD protection device for advanced USB protection Option of powering the LEDs through an external power supply, or through a 5V power supply output from the STBP120 Board uses an internal clock source, without a crystal Mini-B type USB connector can be used if power for LEDs is supplied separately from external source ### STM32F1 系列 32 位 ARM® Cortex®-M3 微控制器，STMicroelectronics32 位闪存微控制器的 STM32 系列基于 ARM Cortex™ M3 核心的突破 - 为嵌入式应用特别开发的核心。 STM32 系列得益于 Cortex-M3 体系结构增强功能，包括为传达改进性能而设置的 Thumb-2 指令，带更好的编码密度，对中断更快的反应，所有的均和领先的工业功耗相接合。出色的实时表现 卓越功效 卓越的和新型的外围设备 最大程度的集成 跨族引脚，外围设备和软件兼容性

LED Lighting Control Demonstration Board

Using DMX512, based on the STM32F103C6 ARM Cortex-M3 microcontroller and STCS1A constant current led driver

Jumper settings to configure the board in transmitter, receiver or standalone mode

The STCS1A device provides dimming control of the on-board LEDs

Over/undervoltage protection using the STBP120 voltage protection device

Uses the ESDAULC6-3BP6 ESD protection device for advanced USB protection

Option of powering the LEDs through an external power supply, or through a 5V power supply output from the STBP120

Board uses an internal clock source, without a crystal

Mini-B type USB connector can be used if power for LEDs is supplied separately from external source

### STM32F1 系列 32 位 ARM® Cortex®-M3 微控制器，STMicroelectronics

32 位闪存微控制器的 STM32 系列基于 ARM Cortex™ M3 核心的突破 - 为嵌入式应用特别开发的核心。 STM32 系列得益于 Cortex-M3 体系结构增强功能，包括为传达改进性能而设置的 Thumb-2 指令，带更好的编码密度，对中断更快的反应，所有的均和领先的工业功耗相接合。

出色的实时表现

卓越功效

卓越的和新型的外围设备

最大程度的集成

跨族引脚，外围设备和软件兼容性
