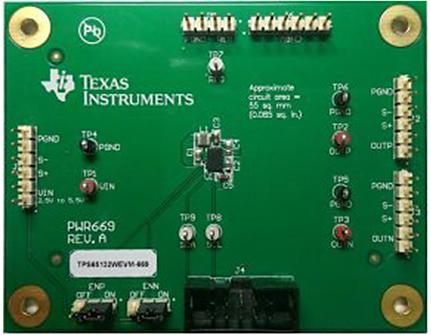

TPS65132WEVM-669

TPS65132W Single Inductor Dual Output Power Supply Evaluation Module

The TPS65132 is designed to support positive / negative output voltage, for example to drive TFT-LCD panels up to 10” at least from SFF to MFF like tablets. In this application the two output rails are usually connected to the Source Driver IC. The device uses a single inductor scheme in order to provide the user the smallest solution size possible. With its input voltage range of 2.5V to 5.5V, it is optimized for products powered by single-cell batteries Li-Ion, Ni-Li, Li-Polymer and output currents up to 80mA. The EVM enables the user to evaluate the functionality of the complete circuit in a tablet application with up to 80mA output current.
