TLP751

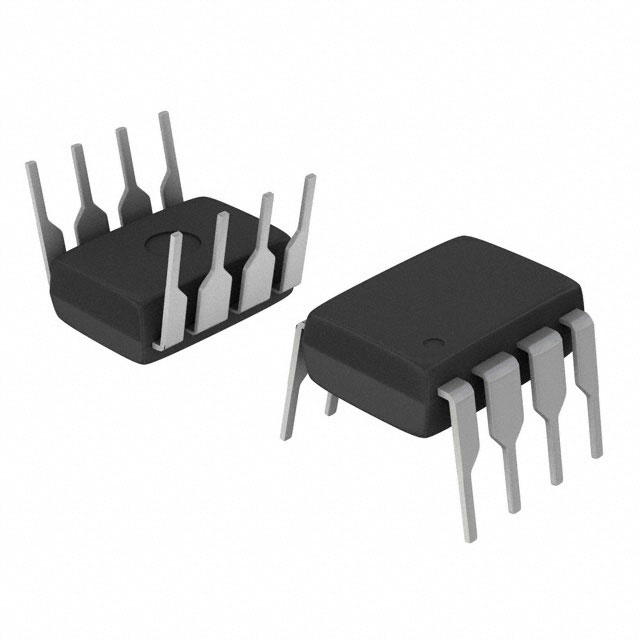

OPTOISO 5kV TRANS W/BASE 8DIP

Digital Logic Ground Isolation

Line Receiver

Microprocessor System Interfaces

Switching Power Supply Feedback Control

Analog Signal Isolation

The TOSHIBA consists of GaAℓAs high−output light emitting diode and a high speed detector of one chip photo diode−transistor. This unit is 8−lead DIP. TLP751 has internal base connection. This base pin should be used for analog application or enable operation. If base pin is open, output signal will be noisy by environmental condition. For this case, TLP750 is suitable.

•  Switching speed: tpHL = 0.3μs typ.

                          tpLH = 0.5μs typ.RL=1.9kΩ

•  TTL compatible

•  UL recognized: UL1577, file no. E67349

•  BSI approved: BS EN60065: 2002, Certificate no. 8869

                    BS EN60950-1: 2002, Certificate no. 8870

•  Isolation voltage: 5000Vrmsmin.
