09062032911

Harting DIN 41612 DIN 电源 H3 系列### DIN41612 - 系列DIN 41612连接器用于将所有的 19in. Eurocard 支架系统相互连接起来。触点材料：1 级和 2 级： 黄铜     触点材料：3 级 磷青铜     电镀 镀金镍     绝缘体 玻璃填充 PBTB     绝缘电阻 MΩ ≥ 106     触点电阻 mΩ ≤ 15     温度范围 °C -65 至 +125     触点间的测试电压 kV rms 1     最大额定电流 A 2     每路插入力/拔出力 g 95     插拔次数 1 级 2 级 3 级          机械 500 400 50          工业大气（天） 21 天 4 天 - 尺寸 mm ---   固定中心 总长 宽度   厚度       B 型 C 型   插头 88.9x2.5 直径 94 8.5 11.1 13 套筒扳手 90x2.8 直径 95 8.1 10.6 11.6

Harting DIN 41612 DIN 电源 H3 系列

### DIN41612 - 系列

DIN 41612用于将所有的 19in. Eurocard 支架系统相互连接起来。

欧时:

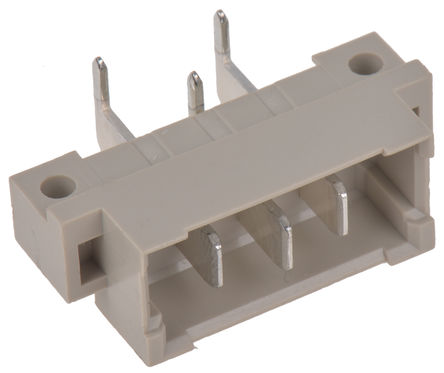

Harting 1 行 3 路 10.16mm 节距 直角 DIN 41612 插头 09062032911, 焊接端接, 15A

得捷:
CONN DIN HDR 3POS PCB RA

立创商城:
09062032911

艾睿:
Thanks to Harting&s;s shrouded 09062032911 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This M connector has 3 M contacts. It has a male type gender. This is a 1-row connector. Its pitch is 10.16 mm. It has a right angle body orientation. This device has a maximum current rating of 15 A. This product is 30.4 mm long, 10.9 mm tall and 18.4 mm deep. It uses the solder termination method.

Allied Electronics:
3 Way 10.16mm Pitch; 1 Row; Right AngleDIN 41612 Connector; Plug; Solder

TME:
Socket; DIN 41612; grounding contact, type H; male; PIN:3; THT

Newark:
# HARTING  09062032911  DIN 41612 Connector, 3 Contacts, Header, 5.08 mm, 1 Row
