RN-131G-EVAL

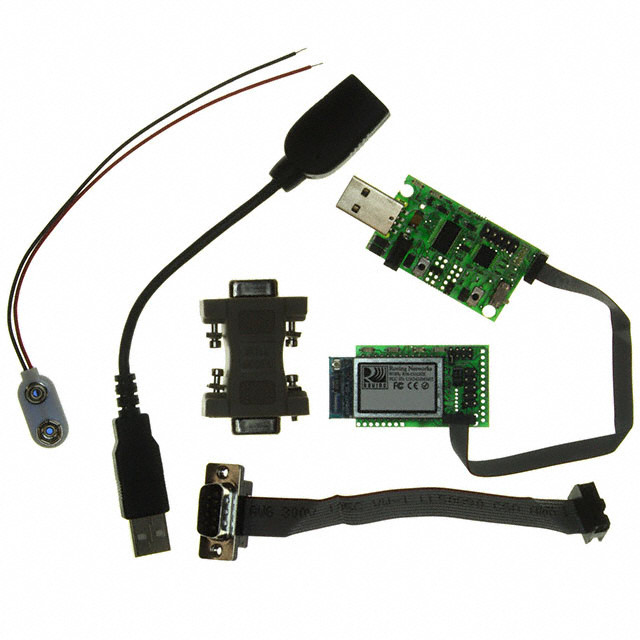

MICROCHIP  RN-131G-EVAL  评估套件, RN-131模块 带天线, U.FL

The is a RN-131G WiFly GSX 802.11G networking module. Because of its small form factor and extremely low power consumption, the RN-131G is perfect for mobile wireless applications such as asset monitoring, GPS tracking and battery sensors. The WiFly GSX module incorporates a 2.4GHz radio, processor, TCP/IP stack, real time clock, crypto accelerator, power management and analog sensor interfaces. This complete solution is preloaded with software to simplify integration and minimizes development of your application. In the simplest configuration the hardware only requires four connections PWR, TX, RX, GND to create a wireless data connection. Additionally, the sensor interface provides temperature, audio, motion, acceleration and other analog data without requiring additional hardware. The WiFly GSX module is programmed and controlled with a simple ASCII command language.

.

Qualified 2.4GHz IEEE 802.11b/g transceiver

.

High throughput, 1Mbps sustained data rate with TCP/IP and WPA2

.

Small, compact surface mount module

.

On board ceramic chip antenna and U.FL connector for external antenna

.

8Mbit flash memory and 128KB RAM

.

UART hardware interface

.

Wi-Fi alliance certified for WPA2-PSK

.

Supports adhoc connections

.

Real time clock for wakeup and time stamping

.

Accepts 3.3V regulated or 2V to 3V battery
