TLE6711GL

多功能稳压器和看门狗 Multifunctional Voltage Regulator and Watchdog

Description:

The TLE6711G/GL is a multifunctional power supply circuit especially designed for automotive applications. It delivers a programmable step up voltage Boost and a precise 5 V fully short circuit protected output voltage Buck. The TLE6711G/GL contains a power on reset feature to start up the system, an integrated digital window watchdog to monitor the connected microcontroller and a system enable output to indicate the microcontroller window watchdog faults. The device is based on ’s power technology SPT® which allows bipolar and CMOS control circuitry to be integrated with DMOS power devices on the same monolithic circuitry. The  small PG-DSO-20-36 SMD packages of the meet the application requirements. Furthermore, the build-in features like under- and overvoltage lockout for boost- and buck-voltage and the overtemperature shutdown feature increase the reliability of the TLE6711G/GL supply system.

Summary of Features:

.

Step up converter Boost Voltage

.

Boost Over- and Under-Voltage-Lockout

.

Step down converter Logic Voltage

.

2% output voltage tolerance

.

Logic Over- and Under-Voltage-Lockout

.

Overtemperature Shutdown

.

Power ON/OFF reset generator

.

Digital window watchdog

.

Enable Output

.

Ambient operation temperature range

.

-40 °C to 125 °C

.

Wide Supply voltage operation range

.

Very low current consumption

.

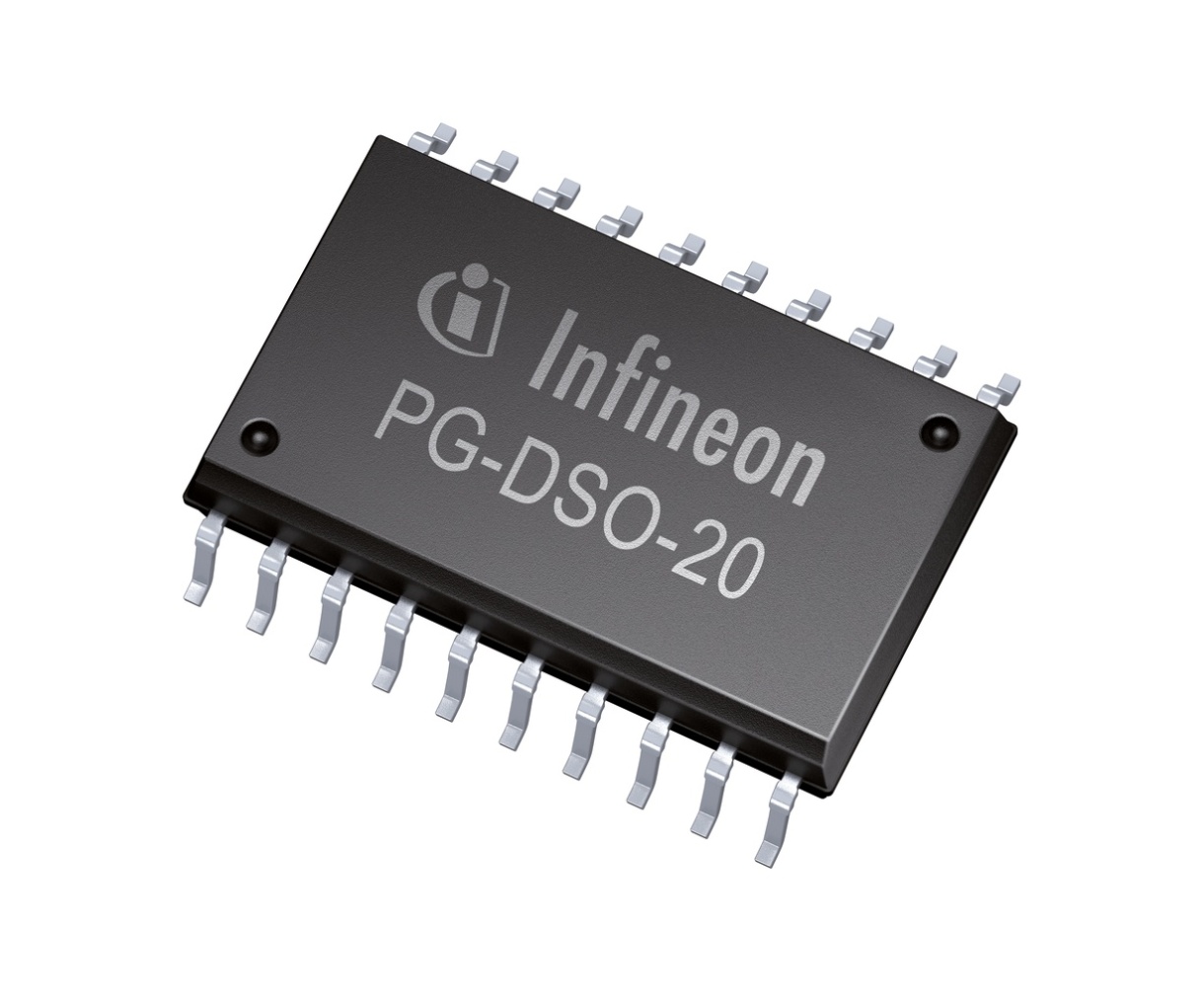

Small PG-DSO-20-36 SMD package

.

Green Product RoHS Compliant

.

AEC Qualified

Benefits:

.

Provide charging voltage for the ignition capacitor in airbag applications

.

Provide airbag-ECU-supply

.

Reset feature and window watchdog is controlling and monitoring the µC
