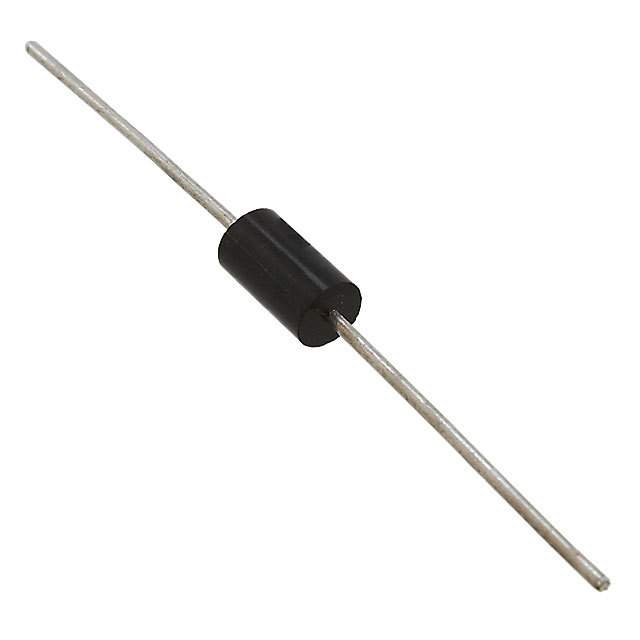

1.5KE82CA-TP
ESD 抑制器/TVS 二极管 BI-DIR 1500W 13.5A
Features
• Economical Series and Quick Response
• Available in Both Unidirectional and Bidirectional Construction
• 1500Watts Peak Power Dissipation
• Excellent Clamping Capability
• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information
• UL Recognized File#E331408
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
得捷:
TVS DIODE 70.1VWM 113VC DO201AE
立创商城:
Vrwm:70.1V 1.5kW
贸泽:
ESD 抑制器/TVS 二极管 BI-DIR 1500W 13.5A
艾睿:
Save yourself hassle by equipping your device with Micro Commercial Components&s; 1.5KE82CA-TP TVS diode which will react to sudden or momentary overvoltage conditions. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 113 V and minimum breakdown voltage is 77.9 V. Its peak pulse power dissipation is 1500 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Bi-Dir 70.1V 1.5KW 2-Pin DO-201AE T/R
Verical:
Diode TVS Single Bi-Dir 70.1V 1.5KW 2-Pin DO-201AE T/R
