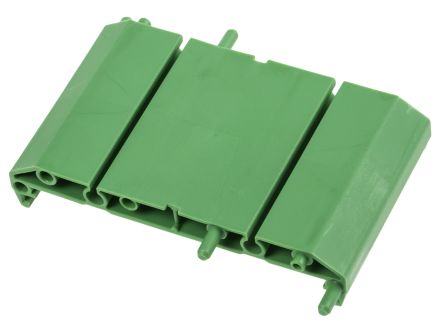

2970015

印刷电路板支架紧凑型模块化系统用于在 DIN 卡轨上安装简单的适配和互连功能以及电子电路。接受 10.3 x 38mm 熔丝或中性选择杆 仅适用于“顶帽”卡轨   |   | **所需数量** |   |   |   ---|---|---|---|---|--- 印刷电路板尺寸 mm | 模块长度 mm | 11.25mm 侧面 | 22.5mm 基座 | 45mm 基座 | 通用支脚   |   | 库存号 | 库存号 | 库存号 | 库存号   |   | **192-2709** | **192-2743** | **192-2759** | **192-2765**   |   | **192-2715** |   |   |   20.00 x 72 x 1.5 | 22.5 | 2 | - | - | 1 42.50 x 72 x 1.5 | 45 | 2 | 1 | - | 2 65.00 x 72 x 1.5 | 67.5 | 2 | - | 1 | 2 87.50 x 72 x 1.5 | 90 | 2 | 1 | 1 | 2 110.00 x 72 x 1.5 | 112.5 | 2 | - | 2 | 2 132.50 x 72 x 1.5 | 135 | 2 | 1 | 2 | 2 155.00 x 72 x 1.5 | 157.5 | 2 | - | 3 | 3 177.50 x 72 x 1.5 | 180 | 2 | 1 | 3 | 3 ### 接口模块（DIN 导轨安装）

印刷电路板支架紧凑型模块化系统

用于在 DIN 卡轨上安装简单的适配和互连功能以及电子电路。

接受 10.3 x 38mm 熔丝或中性选择杆

仅适用于“顶帽”卡轨

欧时:
电子外壳, 基础组件, 插拔式模块, UMK-BE 45

得捷:
ELECTRONIC BOARD BASE

艾睿:
This base element 2970015 connector accessory from Phoenix Contact is the perfect mechanical device to make up the total connector assembly. It has a straight body orientation. This product is 77 mm long, 39.5 mm tall and 45 mm deep. This part has an operating temperature of -40 to 105 °C.

Allied Electronics:
Panel Mount Electronic Board Base; TermBlk; Plug-in; 77 mm L; 56.25 mm W

TME:
Catch

Verical:
Electronic Board Base, Plug-In Module Base Element, Polyamide

MASTER:
Electronic Board Base, Plug-In Module Base Element, Polyamide

Online Components:
Electronic board base, plug-in module base element

Electro Sonic:
Electronic Board Base, Plug-In Module Base Element, Polyamide
