FWDR25P

Back panel D-connector, solder tagThese waterproof back panel D-connectors and jacks meet protection rating IP67 and use an O-ring seal to minimise the extent to which the plug connection protrudes from the panel. Pins | A mm | B mm | RS Stock No. |   ---|---|---|---|---   |   |   | Connector | Socket 9 | 40 | 25.00 | 195-7244 | 195-7389 15 | 48.30 | 33.30 | 195-7272 | - 25 | 62 | 47.05 | 195-7294 | 195-7424 Housing material: | Nickel and tin-plated brass ---|--- Insulation material: | Glass-reinforced thermoplastic, UL94V-0 Insulation resistance: | 5000 mΩ Contact material: | Copper bronze, gold and nickel-plated Contact resistance: | Nom. current: | 5 A max. Operating voltage: | 250 V max. Test voltage: | 1000 V 1 min. Temperature range: | -25°C → +130°C ### 防水 IP67### 防水 IP67 "D"适合于军事应用、工业应用或者商业应用和计算机接口连接等等

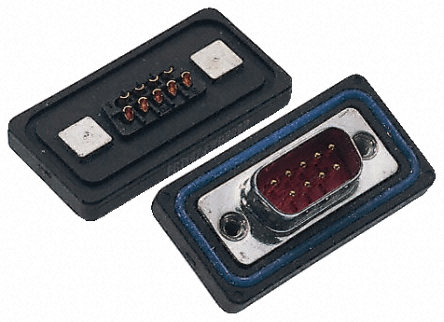

Back panel D-connector, solder tag

These waterproof back panel D-connectors and jacks meet protection rating IP67 and use an O-ring seal to minimise the extent to which the plug connection protrudes from the panel.

Pins | A

mm | B

mm | RS Stock No. |

---|---|---|---|---

  |   |   | Connector | Socket

9 | 40 | 25.00 | 195-7244 | 195-7389

15 | 48.30 | 33.30 | 195-7272 | -

25 | 62 | 47.05 | 195-7294 | 195-7424

Housing material: | Nickel and tin-plated brass

---|---

Insulation material: | Glass-reinforced thermoplastic, UL94V-0

Insulation resistance: | 5000 mΩ

Contact material: | Copper bronze, gold and nickel-plated

Contact resistance: | < 10 mΩ

Nom. current: | 5 A max.

Operating voltage: | 250 V max.

Test voltage: | 1000 V 1 min.

Temperature range: | -25°C → +130°C
