RT9711DGF

80mΩ, 1.5A/0.6A High-Side Power Switches with Flag

General Description

The RT9711A/B/C/D are cost-effective, low voltage, single N-MOSFET high-side power switches, optimized for self powered and bus-powered Universal Serial Bus USB applications. The RT9711 series are equipped with a charge pump circuitry to drive the internal MOSFET switch. The switch"s low RDSON, 80mΩ, meets USB voltage drop requirements. A flag output is available to indicate fault conditions to the local USB controller.

Features

Compliant to USB Specifications

Built-In N-MOSFET

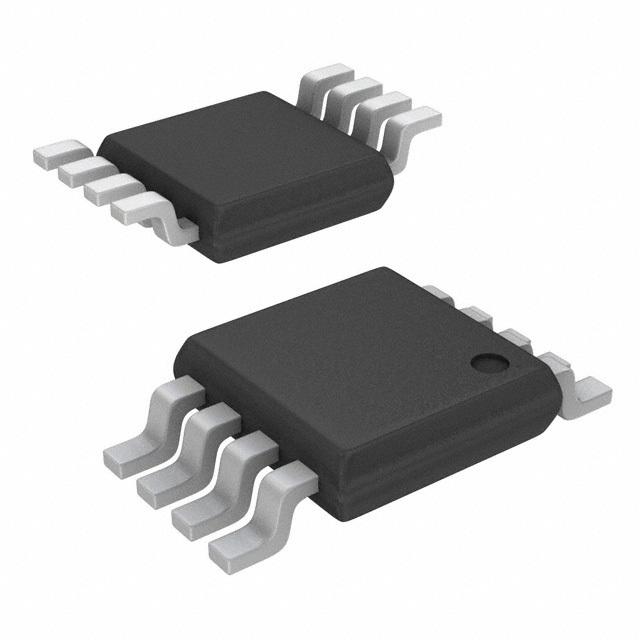

  Typical RDSON: 80mΩ SOT-23-5 & TSOT-23-5 and 90mΩ SOP-8 & MSOP-8

Output Can Be Forced Higher Than Input Off-State

Low Supply Current :

  25μA Typical at Switch On State

  1μA Typical at Switch Off State

Guaranteed 1.5A for RT9711A/B and 0.6A for RT9711C/D Continuous Load Current

Wide Input Voltage Ranges : 2.5V to 5.5V

Open-Drain Fault Flag Output

Hot Plug-In Application Soft-Start

1.7V Typical Under-Voltage Lockout UVLO

Current Limiting Protection

Thermal Shutdown Protection

Reverse Current Flow Blocking no body diode

Smallest SOT-23-5 and TSOT-23-5 Packages

Minimizes Board Space

UL Approved−E219878

TUV IEC60950-1 : 2005Certified

RoHS Compliant and 100% Lead Pb-Free

Applications

USB Bus/Self Powered Hubs

USB Peripherals

ACPI Power Distribution

PC Card Hot Swap

Notebook, Motherboard PCs

Battery-Powered Equipment

Hot-Plug Power Supplies

Battery-Charger Circuits
