LM350T

TEXAS INSTRUMENTS  LM350T  芯片, 稳压器 可调 +1.2/33V

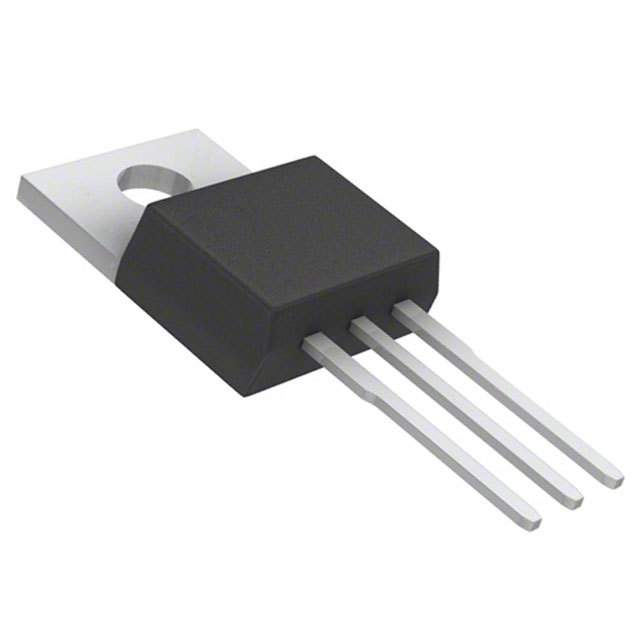

The is a adjustable three terminal positive voltage regulator in 3 pin TO-220 package. This voltage regulator is easy to use and require only two external resistors to set output voltage. Both line and load regulations are comparable to discrete designs. The LM150 is packaged in standard transistor packages which are easily mounted and handled. In addition to higher performance than fixed regulators, the LM150 offers full overload protection built-in IC. It features current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is accidentally disconnected. No capacitors are needed unless device is situated more than 6inches from input filter capacitors. An output capacitor can be added to improve transient response while bypassing the adjustment pin will increase regulator"s ripple rejection.

.

Adjustable output voltage from 1.2V to 33V

.

3A output current

.

Guaranteed thermal regulation

.

Output is short circuit protected

.

Current limit constant with temperature

.

P+ product enhancement tested

.

Ripple rejection of 86dB

.

Ensured 1% output voltage tolerance

.

Ensured maximum 0.01%/V line regulation and 0.3% load regulation

.

Operating temperature range 0°C to 125°C

This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
