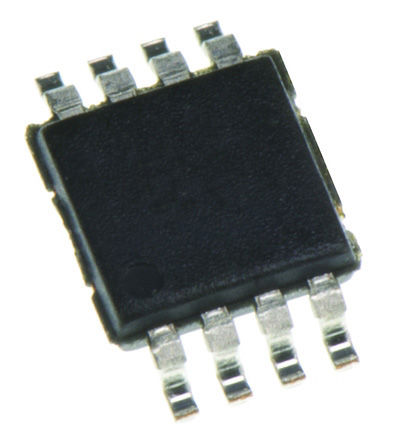

TPS62160DGKT

Step-Down DC/DC Converters Integrated Switch 9V to 30V Input Max., Texas Instruments### 直流/直流开关调节器转换器（集成开关），Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升（升压）、步降（降压）、步升/降（增压/降压）和反相类型，为每个直流稳压器应用提供高效的解决方案。

The is a 1A Synchronous Step-down Converter with DCS-control™ optimized for applications with high power density. A high switching frequency of typically 2.25MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCS-Control topology. It is ideally suited for systems powered from either a Li-ion or other batteries as well as from 12V intermediate power rails. It supports up to 1A continuous output current at output voltages between 0.9 and 6V with 100% duty cycle mode. Power sequencing is also possible by configuring the Enable and open-drain Power Good pins. In power save mode, the device draws quiescent current of about 17µA from VIN. Power save mode, entered automatically and seamlessly if load is small, maintains high efficiency over the entire load range. In shutdown mode, the device is turned off and shutdown current consumption is less than 2µA.

.

DCS-Control™ topology

.

Fixed output voltage versions

.

Seamless power save mode transition

.

17µA Typical quiescent current

.

Power good output

.

100% Duty cycle mode

.

Short-circuit protection

.

Over-temperature protection

.

Green product and no Sb/Br

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
