DM330028

开发板, Curiosity板, dsPIC33CH系列MCU, MPLAB X IDE

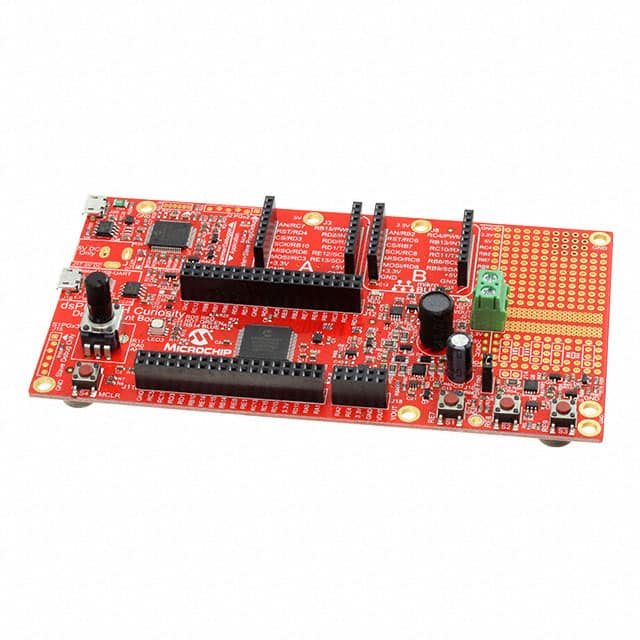

The dsPIC33CH curiosity development board is intended as a cost effective development and demonstration platform for the dsPIC33CH128MP508 family of dual core high performance digital signal controllers. Designed from the ground-up to take full advantage of "s MPLAB® X IDE, the board includes an integrated programmer/debugger and requires no additional hardware making it a perfect starting point to explore the dsPIC33CH dual core family. 2x mikroBUS™ interfaces for hardware expansion compatible with a wide range of existing click boards™ from MikroElektronika. The configurable switch mode power supply SMPS test circuit that can be operated in buck, boost, or buck-boost modes, using either voltage mode or peak current mode control.

.

Integrated PICkit™-On-Board PKOB programmer/debugger

.

1x RGB LED, 2x general purpose red indicator LEDs, 3x general purpose pushbuttons

.

1x MCLR reset pushbutton, 10k potentiometer

.

Galvanically isolated USB-UART interface capable of up to 460,800 baud

.

Female, 100mil, I/O pin access headers for probing, connecting to target microcontroller GPIO pins

.

SMPS output voltage screw terminal

.

Configurable SMPS load step transient generator

.

General purpose through hole and SMT prototyping area
