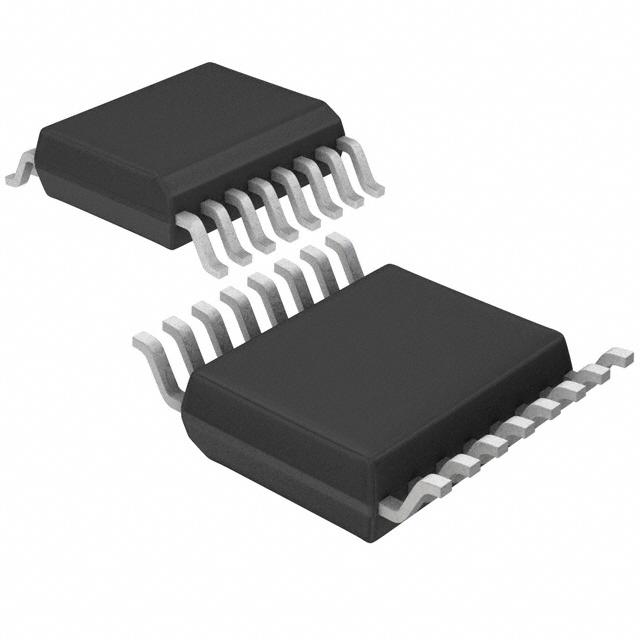

EL5302IU-T7

400MHz的压摆增强的挥发性脂肪酸 400MHz Slew Enhanced VFAs

The EL5x02 and EL5x03 families represent high-speed VFAs based on a CFA amplifier architecture. This gives the typical high slew rate benefits of a CFA family along with the stability and ease of use associated with the VFA type architecture. With slew rates of 3500V/µs, this family of devices enables the use of voltage feedback amplifiers in a space where the only alternative has been current feedback amplifiers. This family will also be available in single, dual, and triple versions, with 200MHz, 400MHz, and 750MHz versions. These are all available in single, dual, and triple versions.

Features

• Operates off 3V, 5V, or ±5V applications

• Power-down to 0µA EL5x02

• -3dB bandwidth = 400MHz

• ±0.1dB bandwidth = 50MHz

• Low supply current = 5mA

• Slew rate = 3500V/µs

• Low offset voltage = 5mV max

• Output current = 140mA

• AVOL = 2000

• Differential gain/phase = 0.01%/0.01°

• Pb-free available RoHS compliant

Applications

• Video amplifiers

• PCMCIA applications

• A/D drivers

• Line drivers

• Portable computers

• High speed communications

• RGB applications

• Broadcast equipment

• Active filtering
