74LVC2G74GD

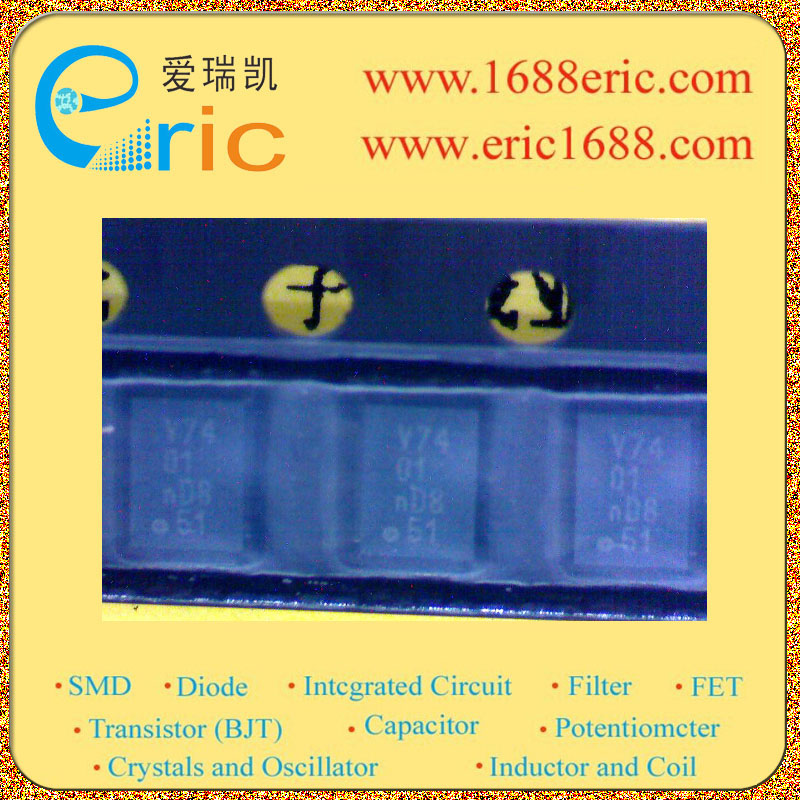

IC 上升沿触发器 74LVC2G74GD XSON8U/SOT996-2 marking/标记 V74

逻辑类型Logic Type| 设置（预设）和复位 SetPreset and Reset \---|--- 电路数Number of Circuits| D型 D-Type 输入数Number of Inputs| 差分 Differential 电源电压VccVoltage - Supply| 1 静态电流IqCurrent - Quiescent Max| 1 输出高，低电平电流Current - Output High, Low| 200MHz 低逻辑电平Logic Level - Low| 2.5ns 高逻辑电平Logic Level - High| 正边沿 Positive Edge 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 32mA，32mA Description & Applications| 1.65 V ~ 5.5 V 描述与应用| Single D-type flip-flop; positive-edge trigger General description The 74LVC1G79 provides a single positive-edge triggered D-type flip-flop. Information on the data input is transferred to the Q-output on the LOW-to-HIGH transition of the clock pulse. The D-input must be stable one set-up time prior to the LOW to HIGH clock transition for predictable operation. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. Wide supply voltage range from 1.65 V to 5.5 V High noise immunity Complies with JEDEC standard: JESD8-7 1.65 V to 1.95 V JESD8-5 2.3 V to 2.7 V JESD8B/JESD36 2.7 V to 3.6 V ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V 24 mA output drive VCC = 3.0 V CMOS low power consumption Latch-up performance exceeds 250 mA Direct interface with TTL levels Inputs accept voltages up to 5 V Multiple package options Specified from 40 C to +85 C and 40 C to +125 C.
