MC912DG128ACPV

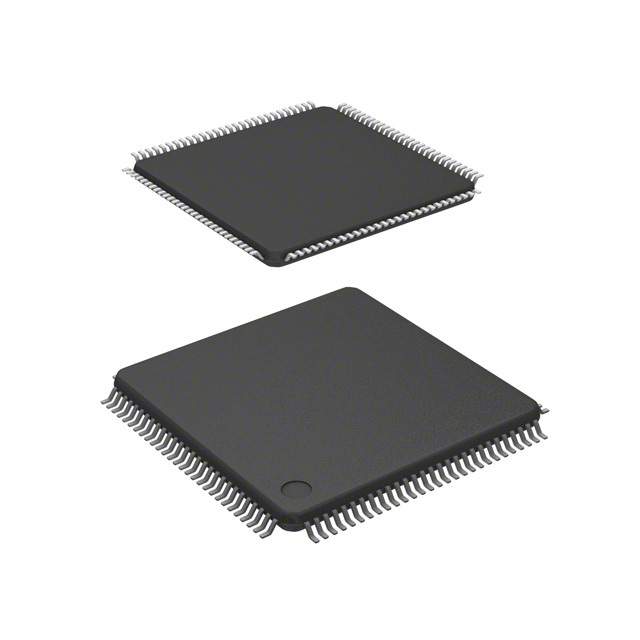

IC MCU 16Bit 128KB FLASH 112LQFP
The MC68HC912DT128A microcontroller unit MCU is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit CPU12, 128K bytes of flash EEPROM, 8K bytes of RAM, 2K bytes of EEPROM, two asynchronous serial communications interfaces SCI, a serial peripheral interface SPI, an inter-IC interface I2C, an enhanced capture timer ECT, two 8-channel, 10-bit analog to-digital converters ADC, a four-channel pulse-width modulator PWM, and three CAN 2.0 A, B software compatible modules MSCAN12. System resource mapping, clock generation, interrupt control and bus interfacing are managed by the lite integration module LIM. The MC68HC912DT128A has full 16-bit data paths throughout, however, the external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for lower cost systems.
Features
• 16-bit CPU12
– Upward compatible with M68HC11 instruction set
– Interrupt stacking and programmer’s model identical to M68HC11
– 20-bit ALU
– Instruction queue
– Enhanced indexed addressing
• Multiplexed bus
– Single chip or expanded
– 16 address/16 data wide or 16 address/8 data narrow modes
• Memory
– 128K byte flash EEPROM, made of four 32K byte modules with 8K bytes protected BOOT section in each module
– 2K byte EEPROM
– 8K byte RAM with Vstby, made of two 4K byte modules.
• Two Analog-to-digital converters
– 2 times 8-channels, 10-bit resolution
• Three 1M bit per second, CAN 2.0 A, B software compatible modules on the MC68HC912DT128A two on theMC68HC912DG128A
– Two receive and three transmit buffers per CAN
– Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit
– Four separate interrupt channels for Rx, Tx, error and wake-upper CAN
– Low-pass filter wake-up function
– Loop-back for self test operation
– Programmable link to a timer input capture channel, for time
stamping and network synchronization.
• Enhanced capture timer ECT
– 16-bit main counter with 7-bit prescaler
– 8 programmable input capture or output compare channels; 4 of the 8 input captures with buffer
– Input capture filters and buffers, three successive captures on four channels, or two captures on four channels with a capture/compare selectable on the remaining four
– Four 8-bit or two 16-bit pulse accumulators
– 16-bit modulus down-counter with 4-bit prescaler
– Four user-selectable delay counters for signal filtering
