LQH32CH3R3M53L

1210 3.3uH ±20%

3.3µH Unshielded Wirewound Inductor 710mA 156mOhm Max Nonstandard

立创商城:
3.3uH ±20% 120mΩ

得捷:
FIXED IND 3.3UH 710MA 156MOHM SM

贸泽:
Fixed Inductors 3.3uH 20% 1MHz

艾睿:

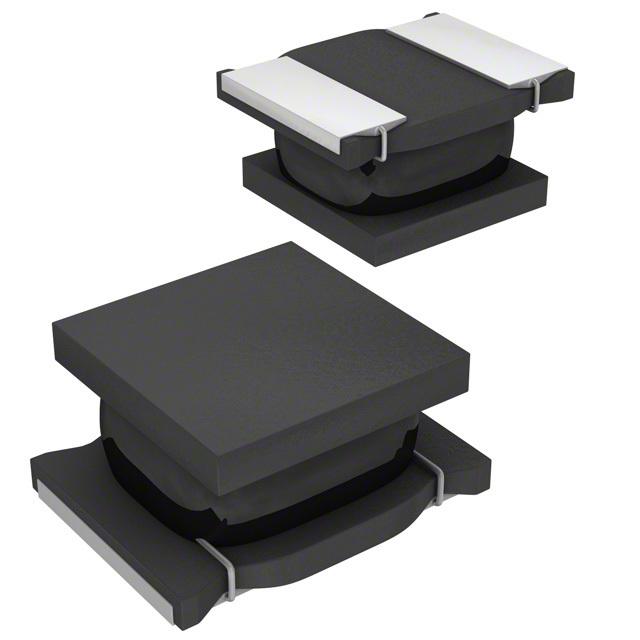

An ideal space-saving electronic component is this power chip LQH32CH3R3M53L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. It has an inductance of 3.3u H. This SMD inductor has a maximum DC current of 710m A with a maximum resistance of 156m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 50M Hz. This device is made with wirewound technology. This product is 3.5 mm long, 1.7 mm tall and 2.8 mm deep.

安富利:
Ind Power Chip Unshielded Wirewound 3.3uH 20% 1MHz Ferrite 710mA 1210 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 3.3uH 20% 1MHz Ferrite 710mA 120mOhm DCR 1210 Automotive Embossed T/R
