RM15WTRZA-8S71

RM-W Series IP67 Waterproof Chassis SocketBrought to you by Hirose, this RM-W Series chassis mount circular connector receptacle has a very high rate of ingress protection, and is dust tight and waterproof. The connector mates with a threaded screw to ensure a sealed connection, and is also keyed to prevent mis-mating. This rugged miniaturized connector is supplied with a sealing ring.• Waterproof Connector • Silver contact Finish • Solder Cup Termination ### Hirose RM 系列视频设备的 10 路标准（15mm 配对面直径）连接器。 包括带金属外壳和焊接端接的电缆或底盘安装插头和插座。坚固耐用的微型圆形连接器 机械和电气性能卓越 ### HIROSE 15mm 圆形视频连接器（螺纹）额定电流 | 5A ---|--- 工作电压 | 350 V 交流，490 V 直流 绝缘电阻 | 500 V 直流条件下最小 1000MΩ 1 A 直流条件下的触点电阻 | 最大 14mΩ 耐电压 | 1kV 交流 温度范围 | -55°C 至 +85°C 湿度 | 符合 MIL-std-202 主体材料 | 己二烯酞酸脂 电缆直径 | 8mm 颜色 | 黑色 技术规格 --- 部件名称 | 材料 | 表面 外壳 | 黄铜和人造树脂 | 镀镍 绝缘体 | 人造树脂 |   公触点 | 铜合金 | 镀银 母触点 | 铜合金 | 镀银

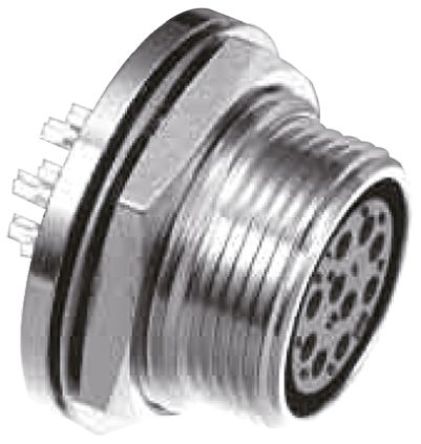

RM-W Series IP67 Waterproof Chassis Socket

Brought to you by Hirose, this RM-W Series chassis mount circular connector receptacle has a very high rate of ingress protection, and is dust tight and waterproof. The connector mates with a threaded screw to ensure a sealed connection, and is also keyed to prevent mis-mating.

This rugged miniaturized connector is supplied with a sealing ring.

• Waterproof Connector

• Silver contact Finish

• Solder Cup Termination

### 标准

JIS C 5432

### Hirose RM 系列

视频设备的 10 路标准（15mm 配对面直径）。 包括带金属外壳和焊接端接的电缆或底盘安装插头和插座。

• 一个坚固的微型

• 提供极佳的机械和电气性能

### HIROSE 15mm 圆形视频连接器（螺纹）
