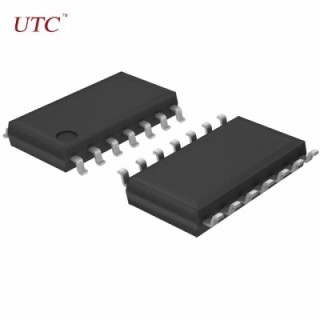

TEA1110A

低电压多功能电话传输线路与拨号器接口

DESCRIPTION

The is a versatile telephone transmission circuit providing full speech and line interface functions in electronic telephone sets. This device works at a line voltage which can be as low as 1.6V DC with reduced  performance to enable parallel connection of telephone sets. It also realizes electronic switching between speeches and dialling.

FEATURES

* Low DC line voltage; operates downto 1.6V excluding voltage drop over external polarity guard

* Voltage regulator with adjustable DC voltage

* Provides a supply for external circuits

* Symmetrical high impedance inputs 64kΩ for dynamic, magnetic or piezo-electric microphones

* Asymmetrical high impedance input 32kΩ for electric microphones

* DTMF input with confidence tone

* MUTE input for pulse or DTMF dialling

* Receiving amplifier for dynamic, magnetic or piezo-electric earpieces

* AGC line loss compensation for microphone and earpiece amplifiers.
