IR2302

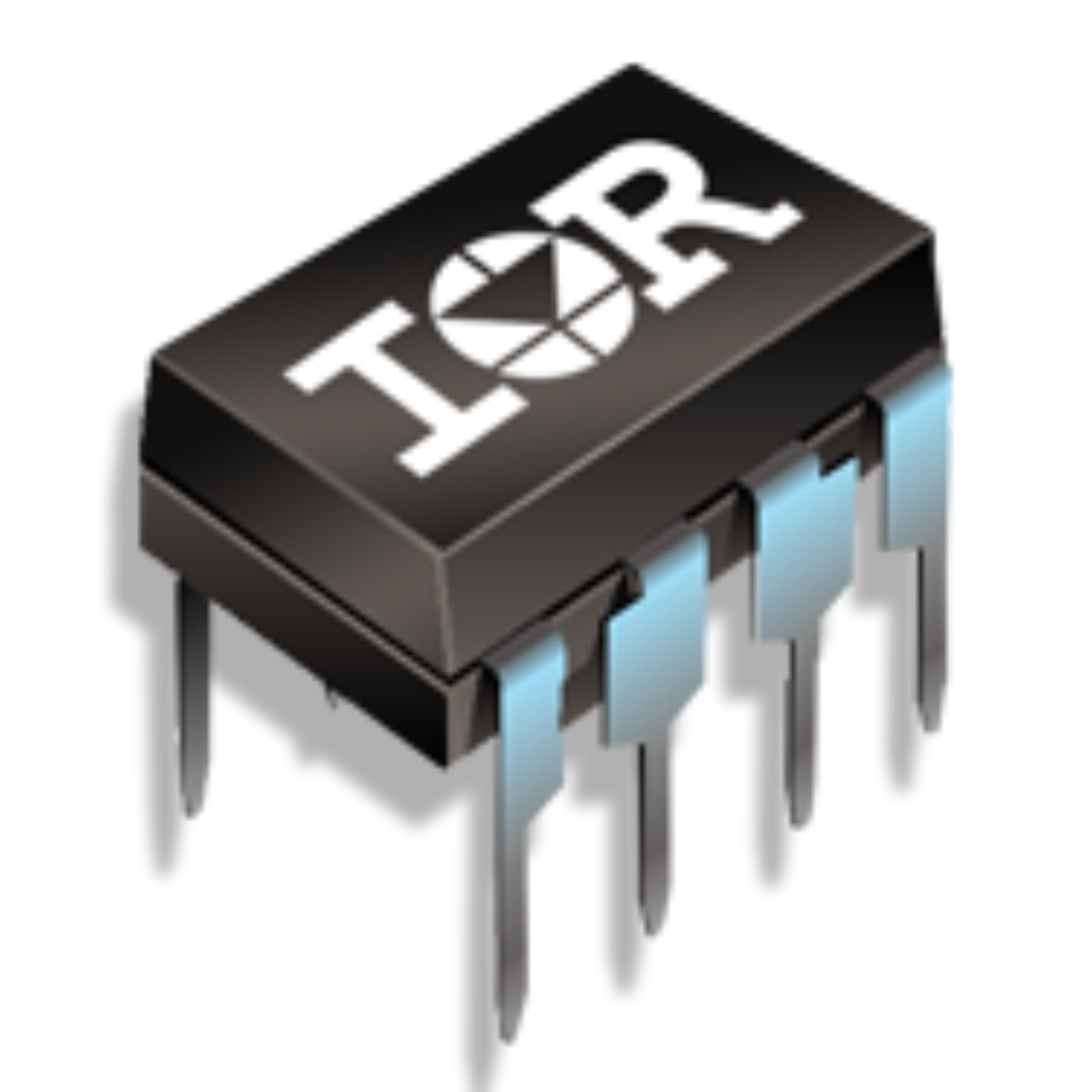

600V Half Bridge Driver IC with typical 0.2A source and 0.35A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC.

Summary of Features:

.

Floating channel designed for bootstrap operation

.

Fully operational to +600 V

.

Tolerant to negative transient voltage

.

dV/dt immune

.

Gate drive supply range from 5 to 20 V

.

Undervoltage lockout for both channels

.

3.3 V, 5 V and 15 V input logic compatible

.

Cross-conduction prevention logic

.

Matched propagation delay for both channels

.

High side output in phase with IN input

.

Logic and power ground +/- 5 V offset

.

Internal 540ns dead-time

.

Lower di/dt gate driver for better noise immunity

.

Shut down input turns off both channels

.

8-Lead SOIC also available LEAD-FREE PbF
