MCZ33972EW/R2

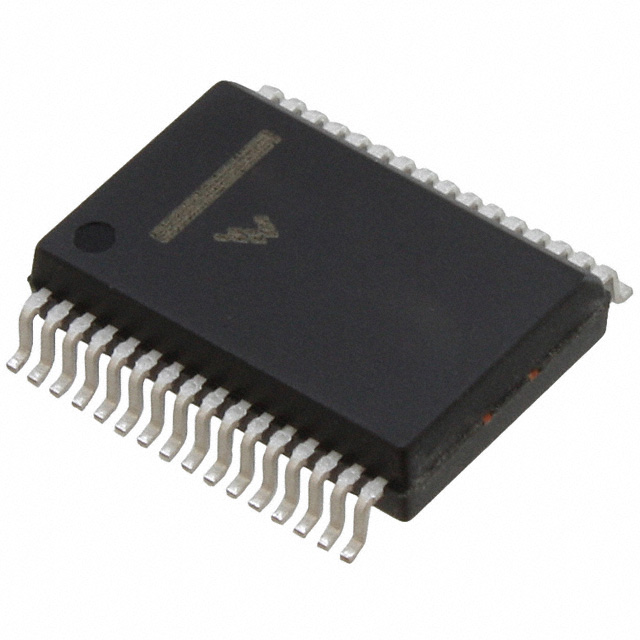

IC SWITCH DETECTION MULT 32-SOIC

Multiple Switch Detection Interface with Suppressed Wake-up

The 33972 Multiple Switch Detection Interface with suppressed wake-up is designed to detect the closing and opening of up to 22 switch contacts. The switch status, either open or closed, is transferred to the microprocessor unit MCU through a serial peripheral interface SPI. The device also features a 22-to-1 analog multiplexer for reading inputs as analog. The analog input signal is buffered and provided on the AMUX output pin for the MCU to read.

Features

• Designed to operate 5.5 V ≤ VPWR ≤ 26 V

• Switch input voltage range -14 V to VPWR, 40 V Max

• Interfaces directly to MPU using 3.3 V/5.0 V SPI protocol

• Selectable wake-up on change of state

• Selectable wetting current 16 or 2.0 mA

• 8 programmable inputs switches to battery or ground

• 14 switch-to-ground inputs

• Typical standby current - VPWR = 100 μA and VDD = 20 μA

• Active interrupt INT on change-of-switch state

• Pb-free packaging designated by suffix code EW

• Exposed pad packaging designated by suffix code EK
