74LVT244WM

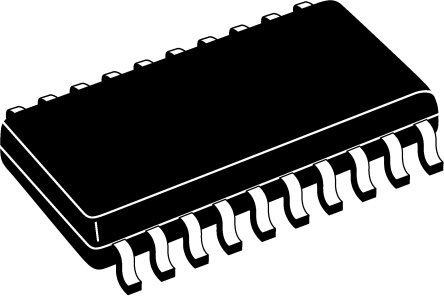

FAIRCHILD SEMICONDUCTOR  74LVT244WM  缓冲器/线路驱动器, 非反相, 3态, 8门, 1输入, 2.7V至3.6V, SOIC-20

The is a low voltage octal Buffer/Line Driver with 3-state outputs. It is designed to be employed as memory address drivers, clock drivers and bus oriented transmitters or receivers which provide improved PC board density. This octal buffer and line driver is designed for low-voltage 3.3V VCC applications, but with the capability to provide a TTL interface to a 5V environment. The LVT244 is fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining low power dissipation.

.

Input and output interface capability to systems at 5V VCC

.

Live insertion/extraction permitted

.

Power up/down high impedance provides glitch-free bus loading

.

Functionally compatible with the 74 series 162244

.

Latch-up performance exceeds 500mA

.

Outputs source/sink -32/+64mA
