9L28050 008H100

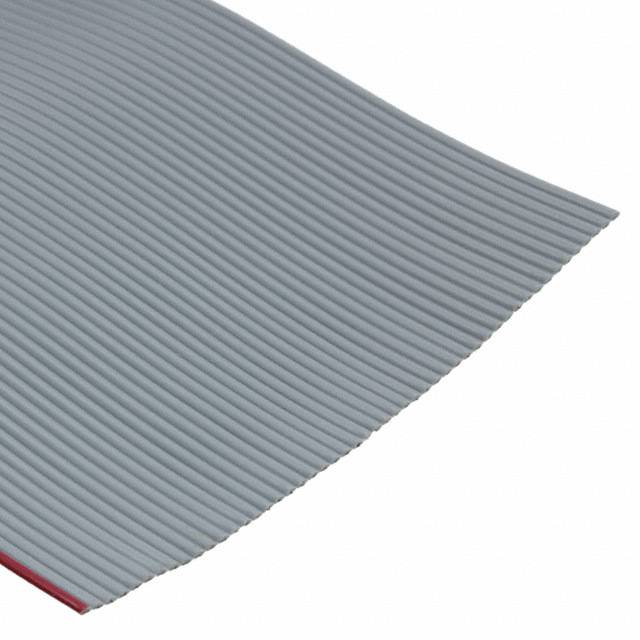

BELDEN 9L28050 008H100 Ribbon Cable, Flat, Grey, 50Conductor, 28AWG, 100Ft, 30.48m

All flat cable types on this page are 28 AWG 7 × 36 stranded and feature 0.050" conductor spacing. PVC insulated, except where noted, and rated 300 V, 105°C.

.

* Voltage Rating:** 300 Vrms. ** Dielectric Withstanding Voltage:** 2000 Vrms. All will terminate to any standard IDC flat cable connector. See Product Index for complete selection. Passes VW-1 vertical wire flame test. UL recognized.

Tinned copper conductors. Gray PVC insulation with red polarity stripe. CSA AMW I A 105°C 300V FT1.
