IPSSAT-GM1P1-5C

CYNERGY3  IPSSAT-GM1P1-5C.  Semi-flush Pressure Trans. -1 to +1 barG 4-20mA M12 plug 3/4"BSP, ATEX 77Y6964 新

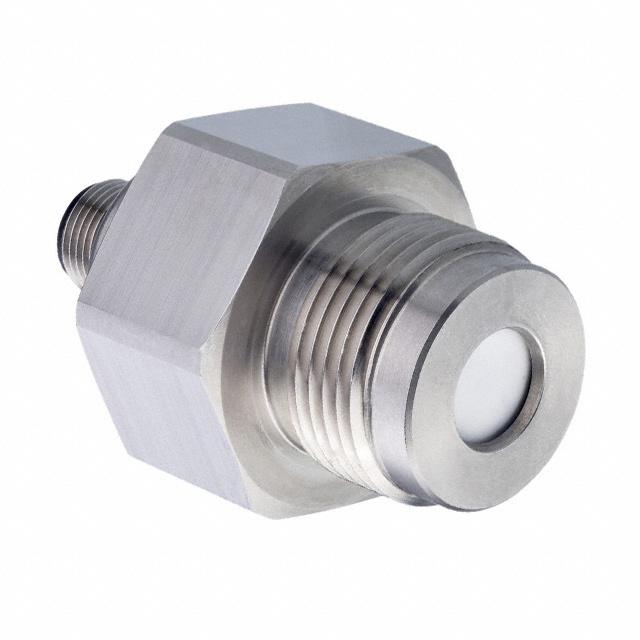

The from Cynergy3 is an intrinsically safe, semi-flush mount pressure transmitter. It has a piezoresistive ceramic pressure sensor. The sensor is semi-flush to the housing making this product ideal for viscous or paste like media. The sensor and housing are made from stainless steel with a choice of internal "O" ring seals to ensure the product is suitable for a wide range of applications. The electronics incorporate a microprocessor-based amplifier, requiring no adjusting and giving stable electronics especially in high vibration or shock applications.

.

Input pressure range from -1bar to +1bar gauge -14.5 to + 14.5psi

.

Supply voltage is 10VDC to 28VDC

.

Output current of 4mA to 20mA

.

Two wire system

.

Accuracy < ±0.25% / FS BFSL, setting errors offsets zero & full scale< ±0.5% / FS

.

316 stainless steel housing material and viton "O" ring seals material

.

Operational life is greater than 100 x 10^6 cycles

.

Insulation resistance is greater than 50Mohm at 50VDC

.

Operating temperature range from -20°C to +120°C

.

M12 connector, 1/4" BSP male connection
