STV04

STV 系列允许高印刷电路板密度设计 镀金触点 0.1 英寸中心上可端对端堆叠 可用水或溶液清洁 触点电阻: 50mΩ 工作温度为 -30 到 +85ºC 预期寿命: 1000 个周期 ### SIL 与三列直插式

单列直插式小型 STV 系列

允许高印刷电路板密度设计

镀金触点

0.1 英寸中心上可端对端堆叠

可用水或溶液清洁

触点电阻: 50mΩ

工作温度为 -30 到 +85ºC

预期寿命: 1000 个周期

欧时:

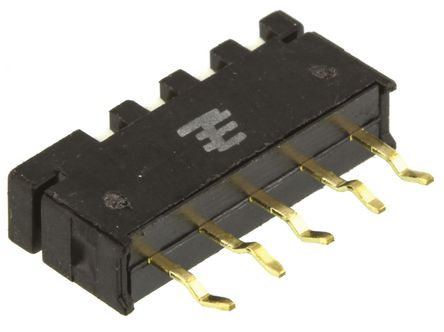

TE Connectivity STV04 4位置 滑动 通孔 SIP 开关, 4P, 10 mA@ 5 V 直流

艾睿:
Use TE Connectivity&s;s STV04 dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.01 A @ 5VDC. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The STV04 DIP switch has a PC pin termination style. This product is 13.36 mm long, 6.2 mm tall and 3.18 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 5 VDC.

Allied Electronics:
Alcoswitch; 4way vertical single-inlineswitch, 0.4VA

Verical:
Switch DIP OFF ON SPST 4 Flush Slide 0.01A 5VDC PC Pins 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 4 Recessed Slide 20VDC 0.4VA PC Pins 2.54mm Thru-Hole
