CRANE

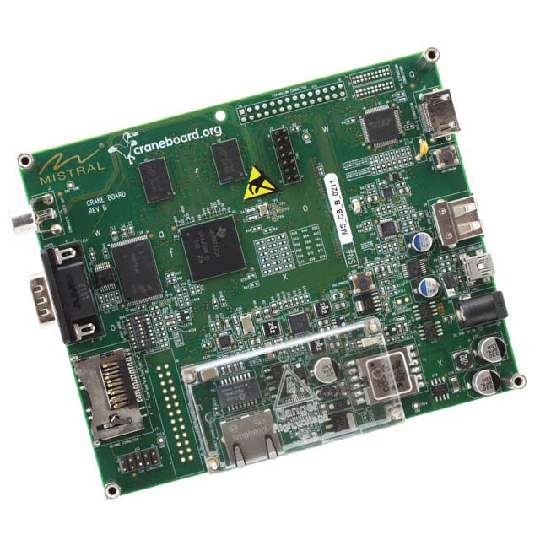

TEXAS INSTRUMENTS CRANE SITARA, AM3517, POE, CAN, DEV BOARD

Crane board is a hardware development platform that enables customers to develop general purpose computing and other applications based on the Sitara AM3517 ARM Cortex - A8 microprocessor device. Crane board is a low cost, open source reference platform to help the developer community leverage the benefits of the AM3517 processor while leveraging a host of exciting peripherals. The AM3517 processor from comprises of Microprocessor Unit MPU TM sub-system based on ARM Cortex - A8 microprocessor, POWERVR SGX Graphics Accelerator sub-system for 3D graphics acceleration to support exciting Graphical User Interface options while maintaining fast and fluid transitions display and gaming effects and Display sub-system with several features for multiple concurrent image manipulation and a programmable interface supporting a wide variety of displays.

.

Uses AM3517 Sitara Processor with 600MHz ARM Cortex-A8

.

Power Management Device - TPS65910

.

Memory of 256MB DDR2 memory, 256MB NAND Flash

.

SD/MMC card connector

.

Power Over Ethernet POE 802.3af

.

JTAG and Serial interface, USBOTG, EHCI Host, CAN, DVI-D, TV-OUTCVBS,10/100 Ethernet Interface

.

Boot mode option switches

.

Expansion connector

.

Board Dimensions of 5.5"" x 4.5""

.

3D Graphics Engine
