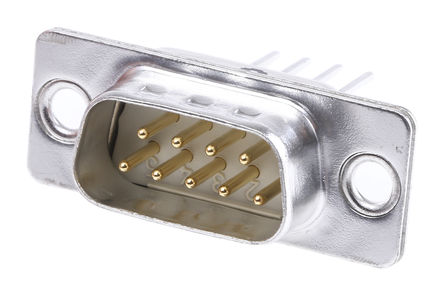

09670095607
Harting 绕接 D-Sub 插头和插座连接器D-sub 插头和插座连接器带绕接柱和车削公触点(D-sub 插头连接器)及车削母触点(D-sub 插座连接器)。 这些绕接 D-sub 插头和插座连接器具有 3.1mm 安装孔,用于匹配,及配接接口,符合 MIL-C-24308、DIN 41652、CECC 75301-802 标准。外壳 | 镀锡钢,有 UL 94-VO 聚酯绝缘体 ---|--- 触点 | 机制铜合金 电镀 | 镀金镍 引脚的尺寸 | 0.60 mm2(绕接) 要绕接的引脚长度 | 13 mm(3 线圈) 电流 | 7.5A 触点电阻 | ≤ 10 mΩ 耐电压 | 1 kV 绝缘电阻 | ≥ 104 MΩ 温度范围 | -55°C 至 +125°C ### 标准MIL-C-24308; DIN 41652; CECC 75301-802### Harting -(D-Sub)### Harting适合于军事应用、工业应用或者商业应用和计算机接口连接等等
Harting 绕接 D-Sub 插头和插座
D-sub 插头和插座连接器带绕接柱和车削公触点(D-sub 插头连接器)及车削母触点(D-sub 插座连接器)。 这些绕接 D-sub 插头和插座连接器具有 3.1mm 安装孔,用于匹配,及配接接口,符合 MIL-C-24308、DIN 41652、CECC 75301-802 标准。
### 标准
MIL-C-24308; DIN 41652; CECC 75301-802
### Harting
适合于军事应用、工业应用或者商业应用和计算机接口连接等等
得捷:
CONN D-SUB PLUG 9POS PNL MNT WW
欧时:
Harting 2.74mm 节距 9 路 直向 面板安装 公 D-sub绕线连接器 09670095607
e络盟:
D-Sub 连接器, DB9, 标准, 插头, 9 触点, DE, 焊接
艾睿:
The 09670095607 DVI connector from Harting is ideal for communicating with any serial connections you have. This 2-row connector has a single port. It has a straight body orientation. Its pitch is 2.74 mm. 09670095607 is housed in polybutylene terephthalate. This product is 12.5 mm tall. Its 9 terminals use the wire wrap termination method.
Allied Electronics:
2.74mm Pitch 9 Way Straight Panel MountMale Wire Wrap D-sub Connector
